What Cameras can I use with Alarm.com?

[jwcsurety (Jason)]

Video through Alarm.com requires an Alarm.com compatible camera. There is currently no way to make an IP camera that is not an Alarm.com video device work with the Alarm.com video service platform.

All Alarm.com IP cameras, the 2GIG-HD100 and most analog cameras with a BNC connection (when attached to an Alarm.com video server) are compatible. The Alarm.com Video servers do not support the HDCVI (HD over Coax) input type.

Alarm.com video devices sold through Surety:
Indoor: ADC-V515 ADC-V523 ADC-V622

Outdoor: ADC-V723

Peripheral Devices: ADC-SG130

Alarm.com video devices:
ADC-V515, ADC-V520, ADC-V520IR, ADC-V521IR, , ADC-V620PT, ADC-V720, ADC-V720W, ADC-V721W, ADC-V722W, ADC-V724, ADC-VC725, ADC-V820, ADC-V821, ADC-VC825, ADC-VC826, ADC-VC836, ADC-VC726, ADC-VC736, ADC-VDB770 ADC-VS120, ADC-VS121, ADC-VS420, ADC-VDB101/2, ADC-VDB105/6, ADC-VDB770. ADC-VC728PF, ADC-VC838PF, ADC-VC827P, ADC-VC847PF, ADC-VDB780B

PoE Compatible:

• 180° HD Camera (ADC-V622)
• Indoor/Outdoor Mini Bullet (ADC-VC726)
• Indoor/Outdoor Bullet Camera (ADC-VC736)
• Indoor/Outdoor Dome (ADC-VC826)
• Indoor/Outdoor Turret Camera (ADC-VC836)
• Pro Series 4MP Bullet PoE Camera with Varifocal Lens (ADC-VC728PF)
• Pro Series 4MP Turret PoE Camera with Varifocal Lens (ADC-VC838PF)
• Pro Series 1080p Dome PoE Camera with Fixed Lens (ADC-VC827P)
• Pro Series 1080p Dome PoE Camera with Varifocal Lens (ADC-VC847PF)
• Indoor/Outdoor Mini Bullet (ADC-VC725) Discontinued.
• Indoor/Outdoor Dome (ADC-VC825) Discontinued.
• Indoor/Outdoor Mini Dome Camera (ADC-V821) Discontinued.
• Outdoor - (ADC-V700X) Discontinued.
• Outdoor PoE - (ADC-V720) Discontinued.
• Indoor Dome - (ADC-V820) Discontinued.

[tyler (Tyler G)]

Indoor Fixed w/IR (ADC-V522IR)

The ADC-V522IR camera supports 1080p HD video, infrared night vision and secure cloud recording

With its compact design and flexible mounting options, the ADC-V522IR is easy to install – whether mounted on a wall or ceiling or simply placed on a shelf.

The ADC-V522IR Is available here.

Features

• HD 1080p video
• IR night vision
• Wide dynamic range (WDR)
• Two-Way Audio

Included accessories

• Wi-Fi Video camera
• Camera stand
• Quick Installation Guide
• Mounting hardware
• Power adapter (10 feet)

Specifications
Maximum resolution	1920x1080
Recording compression	H.264, MPEG-4
Image sensor	1/2.9" CMOS, 2.12 MP, 1920x1080
Lens	2.8 mm, F1.85
Angle of view	113 °
Low-light sensitivity	0 lux with IR
IR range	Up to 5 meters (~15 feet)
Image adjustments	Flip, brightness, contrast, saturation, sharpness
Video motion detection	3 windows, adjustable sensitivity and threshold
Wireless connectivity	802.11 b/g/n/ac, 2.4 & 5 GHz
Ethernet connection	10/100Mbps RJ-45
Simultaneous viewers	10
Operating temperature	0°C – 40°C (32°F – 104°F)
Operating humidity	20%-80% (non-condensing) RH
Max power consumption	12 V DC, 5 W
Dimensions (WxH)	2.75” x 2.06” x 3.67”
Two-Way Audio compatibility	Hardware Version 0101 and Firmware Version IP8168-ALAM-0100b9 +

[tyler (Tyler G)]

1080p Indoor Wi-Fi Camera (ADC-V523)

Get smarter video alerts and high-quality live and recorded video with the ADC-V523. Powerful Video Analytics from Alarm.com can detect and alert you to people, vehicles, and animals entering your property.

With a wide field of view, night vision, and High Dynamic Range (HDR), the ADC-V523 lets you see what’s important – no matter the time of day or lighting conditions.

The ADC-V523 is available here.

Features

• 117° field of view
• High Dynamic Range (HDR)
• Two-Way Audio
• Ethernet Connection or Wi-Fi (2.4 GHz or 5 GHz)

Included Accessories

• Power Adapter
• Mounting Hardware

Specifications
Maximum resolution	1920x1080
Recording compression	H.264
Image sensor	1/2.7” CMOS, 2.1 MP, 1920x1080
Lens	3.0 mm, F2.0
Angle of view	117°
Low-light sensitivity	0 lux with IR
IR range	Up to ~15 ft (4.6 m)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Video motion detection	XXXXXX
Wireless connectivity	802.11 b/g/n, 2.4 & 5 GHz
Operating temperature	32°F - 104° F (0°C - 40° C)
Operating humidity	<95% Non-condensing
Max power consumption	12 V - 1 A DC
Dimensions (WxH)	2.4 x 3 x 3.7” (6.1 x 7.6 x 9.4cm)

[tyler (Tyler G)]

1080p Outdoor Wi-Fi Camera (ADC-V723)

Get smarter video alerts and high-quality live and recorded video with the ADC-V723. Powerful Video Analytics from Alarm.com can detect and alert you to people, vehicles, and animals entering your property.

With a wide field of view, night vision, and High Dynamic Range (HDR), the ADC-V723 lets you see what’s important – no matter the time of day or lighting conditions.

The ADC-V723 is available here!

Features

• 117° field of view
• High Dynamic Range (HDR)
• Wi-Fi (2.4 or 5 GHz)
• Waterproof & Dust-tight

Included Accessories

• Power adapter
• Mounting hardware

Specifications
Maximum resolution	1920 x 1080
Recording compression	H.264
Ingress Protection	IP66
Image sensor	1/2.7” CMOS, 2.1 MP, 1920 x 1080
Lens	3.0 mm, F2.0
Angle of view	117°
Low-light sensitivity	0 lux with IR
IR range	Up to ~40 ft (12 m)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Wireless connectivity	802.11 b/g/n, 2.4 & 5 GHz
Operating temperature	-13°F - 113°F (-25°C - 45°C)
Operating humidity	<95% Non-condensing
Dimensions (WxH)	(L x W x H) 2.5 x 2.5 x 4.5” (6.4 x 6.4 x 11.4 cm)

Requirements

Power	12 V - 1 A DC power adapter (included)
Network	Wi-Fi (2.4 or 5 GHz) connection to broadband Internet

[tyler (Tyler G)]

180° HD Camera ADC-V622

The ADC-V622 is a wide-angle camera, designed for high-end residential video monitoring. Covering a full 180° view, users can monitor large areas without having to purchase multiple cameras. With a simple button push on top of the camera, a user can initiate a video and Two-Way Audio call with the Alarm.com app.

The ADC-V622 is available here!
Installation Guide

Features

• Audio
• Power over Ethernet
• IR night vision
• 180° FOV
• Digital pan/tilt/zoom
• Tap to call out
• Bluetooth music streaming

Included accessories

• Camera
• Mounting hardware
• Quick installation guide
• Power adapter (10 feet)

Specifications
Maximum resolution	1920x1080
Recording compression	H.264
Image sensor	1/2.9" CMOS, 6.8 MP, 3096x2202
Lens	1.62 mm, F2.3
Angle of view	180°
Low-light sensitivity	0 lux with IR
IR range	Up to 5 meters (~15 feet)
Image adjustments	Brightness, contrast, saturation, sharpness
Video motion detection	3 windows, adjustable sensitivity and threshold
Wireless connectivity	802.11 b/g/n, 2.4 & 5 GHz
Ethernet connection	10/100Mbps RJ-45, PoE Enabled
Simultaneous viewers	10
Operating temperature	0°C – 40°C (32°F – 104°F)
Operating humidity	20% – 80% (non-condensing)
Max power consumption	12 V DC, 12 W
Dimensions (WxH)	3.125" x 3.125" x 5.2"
Two-Way Audio compatibility	All Versions

[tyler (Tyler G)]

Alarm.com Wi-Fi Doorbell Camera and Slim Line

Overview

With two options to choose from – the original Alarm.com Wi-Fi Doorbell Camera and the new Slim Line – you can have a variety of options for front door awareness that can be added to your Alarm.com system.

Features

• Doorbell with integrated camera
• PIR motion sensor
• Digital microphone and speaker
• Record doorbell-triggered clips
• Set motion-triggered automation rules
• Receive real-time alerts

Included materials:

• Wall mounting bracket
• Wall screws
• Masonry anchors

Alarm.com Wi-Fi Doorbell Camera

Specifications
Wi-Fi	Compatible with Wi-Fi 802.11 b/g/n, 2.4 GHz up to 150 Mbps.
Video Camera	180° view, auto-scaling, full-color
Resolution	Live: 1080p (can be lowered) Recorded: 720p
Night Vision	Full Color
Audio	Omni-directional microphone
Motion Sensor	Detects motion up to 8 ft range
Battery Life	3 to 5 years
Dimensions	(width x depth; weight): 2.8 x 0.9 in (7.1 x 2.2 cm); 1.9 oz (53.8g)
Environment	Outdoor use, operating temp -40°F/-40°C to 140°F/60°C, water resistant, 0-100% condensing

Power: Operational range is 8-36VAC, 10VA or 12VDC 0.5 to 1.0A wired to an in-home mechanical or digital doorbell chime. Digital doorbell chime compatibility requires SkyBell Digital Doorbell Adapter - not included.

Alarm.com recommends a minimum of 12 VAC for consistent functionality, but the recommended range for best results is 16-24 VAC.

Network requirements Minimum bandwidth 2MBPS

Alarm.com Slim Line Doorbell Camera (ADC VDB105 and VDB106)

Specifications
Wi-Fi	Compatible with Wi-Fi 802.11 b/g/n, 2.4 GHz up to 150 Mbps.
Video Camera	180° view, auto-scaling, full-color
Resolution	Live: 720p (can be lowered) Recorded: 720p
Night Vision	Infrared
Audio	Omni-directional microphone
Motion Sensor	Detects motion up to 8 ft range
Battery Life	3 to 5 years
Dimensions	(width x depth; weight): 1.4 x 4.8 x 1.1 in (3.65 x 12.2 x 2.86 cm); 2.0 oz (56.7 g)
Environment	Outdoor use, operating temp -40°F/-40°C to 140°F/60°C, water resistant, 0-100% condensing

Power: Power
Operational range is 8-36VAC, 10VA or 12VDC 0.5 to 1.0A wired to an in-home mechanical or digital doorbell chime. Digital doorbell chime compatibility requires SkyBell Digital Doorbell Adapter - not included.

Alarm.com recommends a minimum of 12 VAC for consistent functionality, but the recommended range for best results is 16-24 VAC.

Network requirements Minimum bandwidth 2MBPS

SkyBell Installation Guide

[tyler (Tyler G)]

Stream Video Recorder (ADC-SVR122)

Designed specifically to work with the Alarm.com hosted video service, the ADC-SVR122 Stream Video Recorder provides a 24x7 professional local video storage solution. With the Stream Video Recorder, you can connect up to eight Alarm.com video cameras for continuous recording.

The ADC SVR122 is available here!

Included Accessories

• Stream Video Recorder (SVR)
• Power Adapter
• Quick Installation Guide

The ADC SVR122 is compatible with the following cameras:

ADC-V520, ADC-V520IR, ADC-V521IR, ADC-V522IR, ADC-V523, ADC-V620PT, ADC-V622, ADC-V720, ADC-V720W, ADC-V721W, ADC-V722W, ADC-V723, ADC-V820, ADC-V821, ADC-VC725, ADC-VC726, ADC-VC736, ADC-VC825, ADC-VC826, ADC-VC836, ADC-VS120, ADC-VS121, ADC-VS123/NV432-V2, and ADC-VS420

Specifications
Storage	500GB, 1TB, or 2TB of storage
Transcoded playback	MPEG4 H.264
Speed control	1x, 4x, 8x, 16x
HDD bay	1 Bay
Ethernet connection	10Base-T/100BaseTX (RJ45)
HDMI and USB connections	Locally view live and recorded video
Cooling	Fanless Thermal Heat Sink
Dimensions	3.5 x 3.5 x 5.8” (88 x 88 x 146.7 mm)
Operating temperature	32⁰-104⁰F (0⁰-40⁰C)
Storage temperature	-13⁰ to 158⁰F (-25⁰ to 70⁰C)
Operating humidity	20%-95% RH (non-condensing)
Power adapter	12V DC 1.5A with UL/CE/FCC certification

[tyler (Tyler G)]

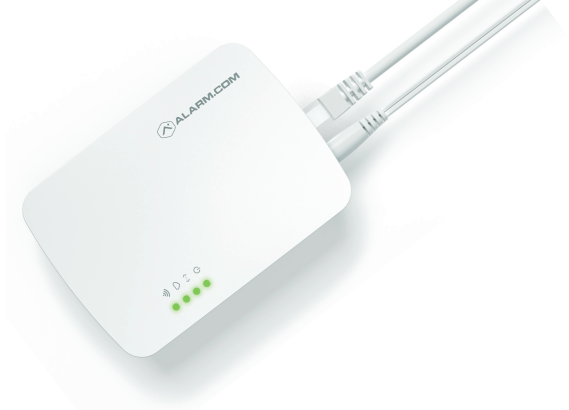

Smart Gateway (ADC-SG130)

With a reliable wireless connection and excellent range, the ADC-SG130 makes it easy to install any Alarm.com Wi-Fi camera. The ADC-SG130 features WPS, eliminating the need to update cameras with complicated router passwords. Simply plug the ADC-SG130 into any wall outlet, connect to the existing router, pair with a Wi-Fi camera, and enjoy instant, secure connectivity.

Features

• Wi-Fi Access Point (2.4 GHz)
• Reliable network for Alarm.com Wi-Fi cameras, ensuring cameras stay connected when the home’s network SSID, password, or ISP changes

In the box

• ADC-SG130 Smart Gateway
• Power Adapter
• Ethernet cable
• Quick Installation guide

Specifications
Ethernet connection	10/100 Mbps (FAST) WAN connection
Wi-Fi connection	802.11 b/g/n, 2.4 GHz
Dimensions without plug (H x W x D)	3.5 x 3.1 x 1.2" (11.6 x 8.0 x 3.1 cm)
LED indicators	4
Buttons	Function, WPS, Reset
Operating temperature	32°F – 104°F (0°C – 40°C)
Operating humidity	0 – 80% (non-condensing) RH
Power	12 VDC Power Adapter
Network	Broadband Internet connection with router
Recommended device connections	4 maximum

[tyler (Tyler G)]

Alarm.com Video Doorbell (ADC-VDB770)

Overview

The ADC-VDB770, Alarm.com’s next-generation video doorbell camera has an expansive 150° vertical Field of View (FOV), allowing you to monitor the entire doorway area. Two-Way Audio and full portrait viewing in the app make it easier than ever to see a speak with visitors. Plus, the ADC-VDB770 uses video analytics to minimize false-positive motion detection and to enable rapid detection of people, so you receive alerts even if visitors don’t ring the bell.

Features

• Expansive FOV (150° V, 115° H)
• Full HD (1440 x 1920) video resolution
• High dynamic range (HDR)
• IR night vision
• Video Analytics for faster, more relevant alerts
• Live video and saved clip viewing
• Two-Way Audio through the mobile app
• Battery heater for low-temperature operation
• 2x2 antenna for improved Wi-Fi range
• Compatible with existing doorbell transformers (requires 16-30 VAC, 10 VA)
• Compatible with mechanical and digital chimes

Included accessories

• Angled mounting wedges
• Power module
• Mounting brackets
• Wire connectors
• Wire extenders

Specifications
Recording Compression	H.264
Ingress protection	IPX4
Max Resolution	1440 x 1920
Image sensor	1/2.7" CMOS, 5 MP, 1440 X 1920
Lens/angle of view	150° vertical, 115° horizontal
Low-light sensitivity	0 lux with IR
IR range	Up to 15 feet (5 meters)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Wireless connectivity	802.11 b/g/n, 2.4 GHz
Operating temperature	-22° F to 104° F (-30°C to 40°C)
Operating humidity	< 95% (non­condensing) RH
Dimensions (W x L x D)	(W x L x D) 1.7" x 5"x 1.5" (42 x 127 x 38 mm)
Motion sensor	None (Video Analytics used for motion detection)

Power requirements
AC transformer 16-30V AC, 10-30VA*
DC transformer 15-30V DC, 8W minimum*

The power module included with the ADC-VDB770 is required for every installation

VDB770 Installation Guide

[tyler (Tyler G)]

1080p Indoor Wi-Fi Camera (ADC-V515)

Overview

A brilliant security camera so affordable you can have one in every room.
Get smarter video alerts and high-quality live and recorded video with the ADC-V515. With night vision and High Dynamic Range (HDR), the ADC-V515 lets you see what’s important – no matter the time of day or lighting conditions. Video Analytics can detect and alert you to people, vehicles, and animals entering your property. Compatible with Smart View for Onboard Recording for 24/7 local recording.

The ADC V515 is available here!

Included accessories

• Power Adapter
• Mounting Hardware

Features

• 110° field of view
• High Dynamic Range (HDR)
• Two-Way Audio
• 2.4 GHz Wi-Fi connection
• Works with the Alarm.com customer website and mobile app
• Continuous Local Recording
  • Smart View for Onboard Recording
  • Stream Video Recorder
• Video Analytics, Video Motion Detection, and sensor-triggered clips saved to the cloud

Recording Compression	H.264
Max resolution	1920x1080
Image sensor	1/3", 2.12 MP, 1920x1080, HDR
Lens / angle of view	3.19 mm, F2.2, 110°
Low-light sensitivity	0 lux with IR
IR range	Up to ~15 ft (4.6 m)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Wireless connectivity	802.11 b/g/n, 2.4 GHz
Operating temperature	32° F - 104° F (0° C - 40° C)
Operating humidity	20% - 100% Non-condensing
Max power consumption	12 V - 1 A DC
Dimensions (L X W X H)	2.8 x 2.3 x 3.1" (7.1 x 5.9 x 8.0cm)

Requirements

Power	12 V - 1 A DC power adapter (included)
Network	2.4 GHz Wi-Fi connection to broadband Internet

[tyler (Tyler G)]

Indoor/Outdoor Mini Bullet (ADC-VC725)

The ADC-VC725 from Alarm.com is a high-performance mini bullet camera optimized for indoor and outdoor video monitoring. Its compact design and outstanding HD quality video make the camera ideal for both commercial and residential video installations. The camera features a dust-resistant exterior casing with an IP66 rating and Power over Ethernet (PoE) capabilities.

Features:

• Power over Ethernet
• IR night vision
• HD video
• IP66-rated waterproof & dust tight
  • This allows the camera to be mounted outdoors

Specifications

Live resolution options	1280x720, 640x360, 320x180, and 176x100
Recording resolution	1280x720
Recording compression	H.264
Image sensor	1/2.8" Progressive Scan CMOS
Lens	4 mm, F2.0
Angle of view	85°
Low-light sensitivity	0 lux with IR
IR range	Up to 30 meters (~95 feet)
Image adjustments	Brightness, contrast, saturation, sharpness
Video motion detection	3 windows, adjustable sensitivity and threshold
Ethernet connection	10/100Mbps RJ-45
Password authentication	“Digest” authentication
Simultaneous viewers	6
Operating temperature	-30°C – 60°C (-22°F – 140°F)
Operating humidity	< 95% (non-condensing)
Max power consumption	12 V DC ± 10%, 5 W, PoE (802.3af)
Dimensions (LxWxH)	70 x 154.2 x 60.5 mm (2.8 x 6.2 x 2.4”)
Weight	500 g (1.1 lbs.)
Ingress protection	IP66

[tyler (Tyler G)]

Outdoor Wireless (ADC-V721W)

The ADC-V721W is a wireless outdoor IP night vision camera. It provides HD 720P live and recorded video. This camera has been designed to see at a distance of over 40 feet in the dark (black and white) while still delivering true daytime colors thanks to the mechanical IR cut filter. Plus, wireless set-up is a breeze with push button wireless set-up using either wireless access point mode or the WPS button.

Included Accessories

• Power Adapter (8 feet)
• Input/output connecters
• Wall screws

Specifications

Live resolution options	1280x960, 800x600, 640x480, 320x240, 176x144
Recording resolution options	1280x800, 600x400, 300x200
Live quality	High, medium, and low compression options
Recording quality	High and medium compression options
Recording compression	H.264, MPEG-4
Image sensor	1/4” CMOS, 1280x800
Iris	Fixed Iris, F1.8
Focal Length	F=3.6mm
Field of view	62º (horizontal), 38º (vertical)
Low-light sensitivity	0 lux with IR on
IR LED illumination	40 Feet (12 meters)
Weatherproofing	IP-66, with UV protection
Image adjustments	Brightness, Contrast, Saturation, Sharpness, Exposure
Video motion detection	3 windows, adjustable sensitivity and threshold
Digital input trigger	Yes
I/O Triggered Video Recording
Password authentication	"Digest” authentication
Wi-Fi	802.11 b/g/n 2.4 GHz wireless protocols (WPA2 / WPA / WEP / None)
Simultaneous viewers	10
Privacy Button	No
Operation temperature	32° ~ 104° F (0°C ~ +40°C)
Operating humidity	20% ~ 80% RH
Max power consumption	12V DC, 5W
Dimensions (LxWxH)	2.76", 1.65", 3.83"
Weight	4.2 oz.

Network requirements Minimum bandwidth 0.25 Mbps

[tyler (Tyler G)]

Outdoor Wireless (ADC-V722W)

1080p HD video recording and excellent low-light performance make the ADC-V722W Wi-Fi Video Camera from Alarm.com a powerful video solution for any location. With an IP66 rating, the ADC-V722W is weather-resistant, dust-tight, and ideal for capturing video indoors or outdoors.

Features

• HD 1080p video
• Waterproof and Dust-Tight
• IR night vision
• Wide dynamic range (WDR)

Included accessories

• Power Adapter (10 feet)
• Wi-Fi Video camera
• Quick Installation Guide
• Mounting hardware
• Video Analytics, Video Motion Detection, and sensor-triggered clips saved to the cloud

Specifications

Maximum resolution	1920x1080
Recording compression	H.264, MPEG-4
Image sensor	1/2.9" CMOS, 2.12 MP, 1920x1080
Lens	4.0 mm, F2.1
Angle of view	88°
Low-light sensitivity	0 lux with IR
IR range	Up to 12 meters (~40 feet)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Video motion detection	3 windows, adjustable sensitivity and threshold
Wireless connectivity	802.11 b/g/n/ac, 2.4 & 5 GHz
Ethernet connection	No
Simultaneous viewers	10
Operating temperature	-20°C – 50°C (-4°F – 122°F)
Operating humidity	20%-100% (non-condensing) RH
Max power consumption	12 V DC, 5 W
Dimensions (WxH)	2.4” x 4.4”
Ingress Protection	IP66
I/O Triggered Video Recording

Network requirements Minimum bandwidth - 0.5 Mbps

[tyler (Tyler G)]

1080p Outdoor Wi-Fi Camera with Two-Way Audio (ADC-V724/724X)

Overview

The ADC-V724/724X is Alarm.com’s first outdoor camera with Two-Way Audio, allowing for proactive deterrence of unwanted activity on a customer’s property. Powerful Video Analytics from Alarm.com can detect and alert customers to people and animals active around their homes or businesses. Two-Way Audio gives your customers the power to discourage unwanted visitors. Plus, thanks to Onboard Recording with Smart View your customers can locally record encrypted video onto a microSD (sold separately) and view footage from anywhere.

Included accessories

• Power adapter
• Installation guide

Features

• Two-Way Audio to hear and speak with visitors
• Microphone and speaker
• Video Analytics for smarter detection and relevant alerts
• Onboard Recording with Smart View for continuous, local, encrypted recordings
• High Dynamic Range (HDR)
• Wi-Fi (2.4 or 5 GHz)
• Audio included in recorded clips for additional awareness
• Works with the Alarm.com Customer Website and Customer app
• Improved mount for long-term stability
• Easier access to microSD card door

Specifications

Image sensor	1/3”, 2 MP, 1920x1080, HDR
Recording Compression	H.264
Live resolution options	Up to 1920 x 1080
Recording resolution options	Up to 1920 x 1080
Horizontal Field of View	117 degrees
Vertical Field of View	65 degrees
Diagonal Field of View	140 degrees
Wi-Fi: 802.11 support	b/g/n/ac, 2.4 & 5 GHz
Ingress Protection	IP66
Low Light Sensitivity	0.5 lux with IR
IR Range	Up to ~49 ft (15 m)
Image adjustments	Flip, brightness, contrast, saturation, sharpness, exposure
Operating Temperature	-4°F – 122° F ( -20°C – 50°C)
Operating Humidity	20%-100% (non-condensing) RH
Dimensions (L x W x H):	2.5 x 2.5 x 4.5” (6.35 x 6.35 x 11.43 cm)

Requirements

Power	12 V – 1 A DC power adapter (included)
Network	Wi-Fi (2.4 or 5 GHz) connection to broadband Internet

LED guide

LED pattern	Description
Off	Power off
Solid green	Connected to Alarm.com
Blinking green	Local network connection
Blinking red and green	Reverting to factory default settings
Blinking red	Power on, camera booting
Solid red	No local or Internet connection
Blinking blue	WPS mode
Blinking white	Wi-Fi Access Point mode

[tyler (Tyler G)]

Alarm.com Wireless Video Doorbell (ADC-VDB780B)

LED guide Button light guide [VDB780_LED_Guide_overview_(no_description)] Top LED Button LED Operational States Mode Description Button LED behavior Standby or off The camera is in standby mode (normal operation) or the battery is drained and requires recharging. Off Local connection The camera has a local network connection. Solid green No local connection The camera does not have a local network connection. Solid red Low battery The camera’s battery is low and requires a re…
