This page contains data sheet information for 3 different models of the ADC-V729 camera:
- ADC-V729
- ADC-V729AC
- ADC-VC729P
While these cameras are similar, there are variations between models. The camera model can be found on the box for reference.
Overview

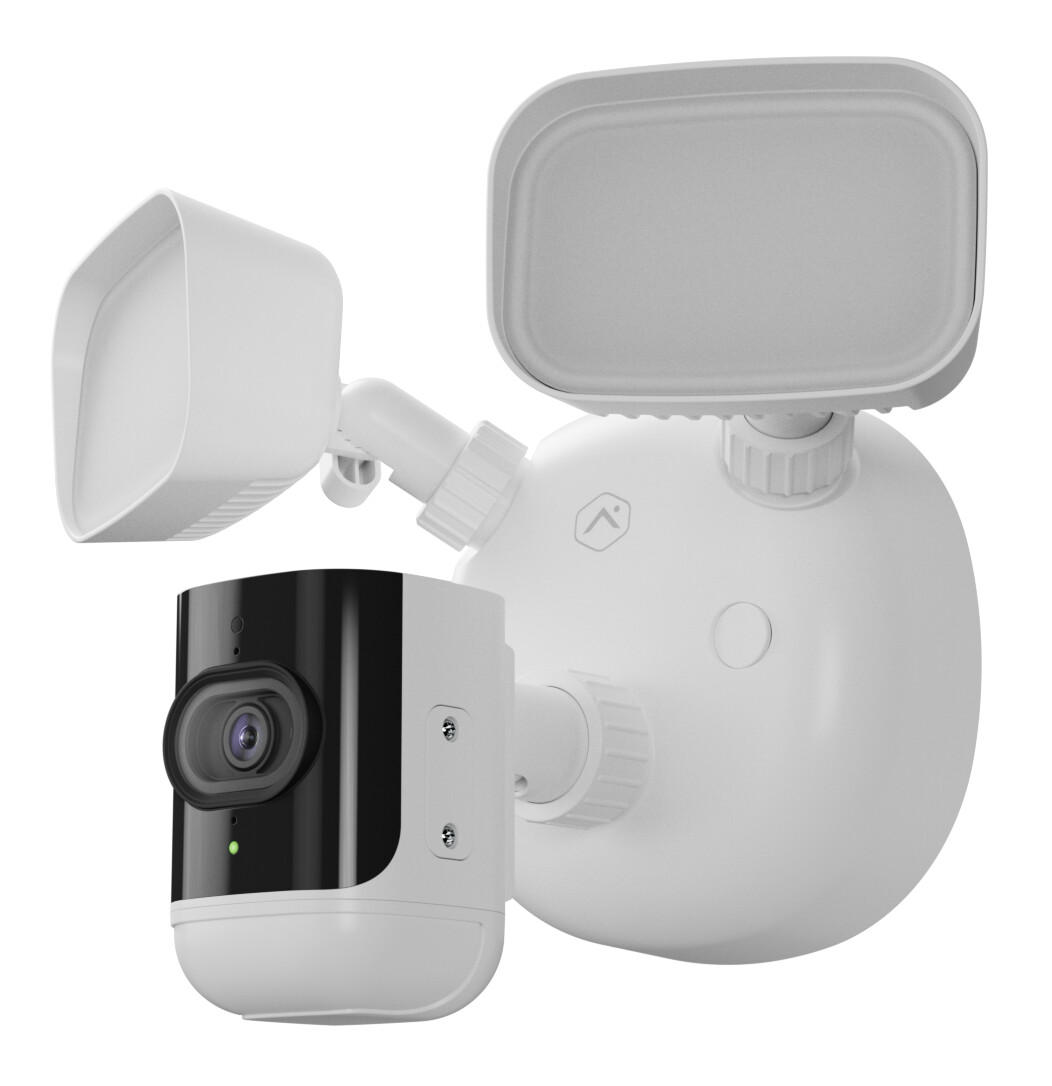

The ADC-V729/V729AC/VC729P series is a 4 MP outdoor Wi-Fi floodlight camera with Two-Way Audio, provides the next level of awareness and security. Deter intruders with powerful strobing floodlights, flashing red/blue warning lights, and a powerful speaker. Customize the lights to your needs with multiple options such as Person/Vehicle/Animal detection triggers or motion triggers and choosing between full floodlight or strobing effects. With high quality 4MP video you will never miss a detail day or night. Plus, Onboard Recording with Smart View provides 24/7 coverage with locally recorded encrypted video.
Features
| 4MP Video | Onboard Recording with Smart View |
| 3000 Lumen Floodlight | Video Analytics with People, Animal, and Vehicle Detection |
| PIR Motion sensor for floodlight activation | Perimeter Guard™ and Manually Triggered Warning Sounds+Lights for proactive deterrence |
| Red/blue warning light |
ADC-V729 Details
Specifications
| Recording compression | H.264 |
| Ingress protection | IP 66 |
| Live resolution | Up to 2688 x 1520 |
| Recording resolution | Up to 2688 x 1520 |
| Image sensor | 4MP 1/2.7 format |
| Lens / angle of view | 117° horizontal, 62° vertical, 141° diagonal |
| Low-light sensitivity | 0.5 lux |
| IR range | 15 meters |
| Lights | 4000K, 3000 lumens floodlights |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating humidity | 20% - 100% |
| Wireless connectivity | Dual band 802.11 b/g/n/ac 2x2 |
| Dimensions (L x W x H) | 305 x 235 x 198 mm |
Power requirements
DC: 24V DC 2A PSU (included)
ADC-V729AC Details
Specifications
| Recording compression | H.264 |
| Ingress protection | IP 66 |
| Live resolution | Up to 2688 x 1520 |
| Recording resolution | Up to 2688 x 1520 |
| Image sensor | 4MP 1/2.7 format |
| Lens / angle of view | 117° horizontal, 62° vertical, 141° diagonal |
| Low-light sensitivity | 0.5 lux |
| IR range | 15 meters |
| Lights | 4000K, 3000 lumens floodlights |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating humidity | 20% - 100% |
| Wireless connectivity | Dual band 802.11 b/g/n/ac 2x2 |
| Dimensions (L x W x H) | 305 x 235 x 198 mm |
Power requirements
AC: 100-240V
ADC-VC729P Details
Specifications
| Recording compression | H.264 |
| Ingress protection | IP 66 |
| Live resolution | Up to 2688 x 1520 |
| Recording resolution | Up to 2688 x 1520 |
| Image sensor | 4MP 1/2.7 format |
| Lens / angle of view | 117° horizontal, 62° vertical, 141° diagonal |
| Low-light sensitivity | 0.5 lux |
| IR range | 15 meters |
| Lights | 4000K, 3000 lumens floodlights |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Operating temperature | -4°F to 122°F (-20°C to 50°C) |
| Operating humidity | 20% - 100% |
| Wireless connectivity | Ethernet only |
| Dimensions (L x W x H) | 305 x 235 x 198 mm |
Power requirements
| DC | 24V DC 2A PSU or PoE ++ (802.3bt) |
| Ethernet connection | 10/100 Mbps RJ-45 |
