Indoor Fixed w/IR (ADC-V522IR)

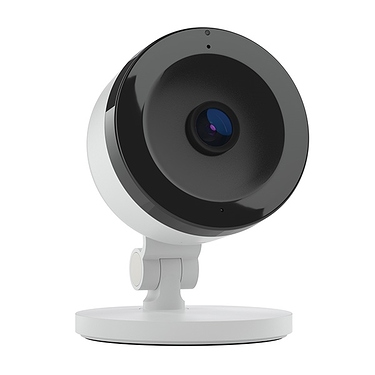

The ADC-V522IR camera supports 1080p HD video, infrared night vision and secure cloud recording

With its compact design and flexible mounting options, the ADC-V522IR is easy to install – whether mounted on a wall or ceiling or simply placed on a shelf.

Features

• HD 1080p video
• IR night vision
• Wide dynamic range (WDR)
• Two-Way Audio

Included accessories

• Wi-Fi Video camera
• Camera stand
• Quick Installation Guide
• Mounting hardware
• Power adapter (10 feet)

Specifications
Maximum resolution	1920x1080
Recording compression	H.264, MPEG-4
Image sensor	1/2.9" CMOS, 2.12 MP, 1920x1080
Lens	2.8 mm, F1.85
Angle of view	113 °
Low-light sensitivity	0 lux with IR
IR range	Up to 5 meters (~15 feet)
Image adjustments	Flip, brightness, contrast, saturation, sharpness
Video motion detection	3 windows, adjustable sensitivity and threshold
Wireless connectivity	802.11 b/g/n/ac, 2.4 & 5 GHz
Ethernet connection	10/100Mbps RJ-45
Simultaneous viewers	10
Operating temperature	0°C – 40°C (32°F – 104°F)
Operating humidity	20%-80% (non-condensing) RH
Max power consumption	12 V DC, 5 W
Dimensions (WxH)	2.75” x 2.06” x 3.67”
Two-Way Audio compatibility	Hardware Version 0101 and Firmware Version IP8168-ALAM-0100b9 +

[tyler (Tyler G)]

Setup and Installation

How to Install an Indoor Fixed w/IR Camera ADC-V521IR and ADC-V522IR

Pre-installation checklist ADC- V521IR ADC-V521IR camera (included) AC Power adapter (included) Ethernet or Wireless (2.4 GHz) connection to broadband (Cable, DSL, or Fiber Optic) Internet A computer, tablet or smartphone with Wi-Fi is required if the router does not have the Wi-Fi Protected Setup (WPS) feature Login and Password for the Alarm.com account to which you will add the camera [521install] ADC-V522IR ADC-V522IR camera (included) AC Power adapter (included) Ethernet or Wireless…

LED reference guide

Connection status

• Sold Green: Internet Connection - Local network and internet connection
• Flashing Green: Local network connection - Local network connection only, no internet
• Sold Red: No network connect - No local network or internet connection
• Flashing Red: System booting - Camera is booting

Wireless enrollment

• Flashing Blue: WPS Mode- To enter WPS mode, push the WPS button and release when flashing blue (about 3 seconds)
• Flashing White: AP Mode - To enter AP mode, push the WPS button and release when flashing white (about 6 seconds).

Factory reset

• Flashing Green and Red: Factory Reset - This will restore factory-default settings to the camera. If already installed, the camera may need to be removed from the Alarm.com account and re-added after a factory reset. To perform a factory reset, push the WPS button and release when flashing Green and Red (about 15 seconds).

[tyler (Tyler G)]

Troubleshooting

How to Install an Indoor Fixed w/IR Camera ADC-V521IR and ADC-V522IR

Troubleshooting If you have issues connecting the camera to the account, power cycle the camera (unplug the power jack from the camera and then plug it back in to restore power) and try adding the camera again. If issues persist, Factory Reset the camera to defaults by using the WPS button located on the back of the camera. Factory reset an ADC-V521IR or 522IR Resetting a device to its factory default settings removes all of its existing programming and memory. Most devices must be removed …
