tyler
(Tyler G)
April 10, 2024, 9:10pm
1

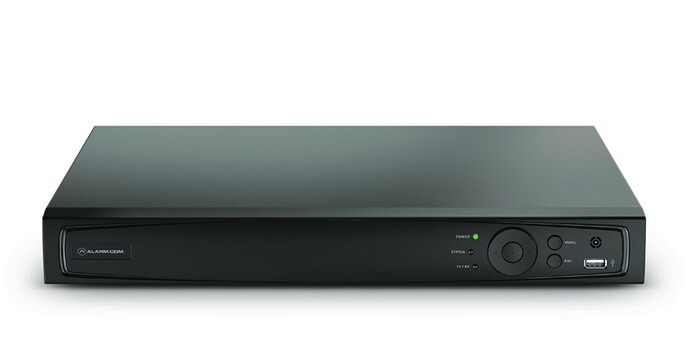

Stream Video Recorder
Designed specifically to work with the Alarm.com hosted video service, the ADC-CSVR126 Stream Video Recorder provides a 24x7 professional solution for commercial-grade local video storage. With the Stream Video Recorder, you can associate up to 16 Alarm.com video cameras for continuous recording.
Features
Continuously records up to 16 Alarm.com video camera streams for local storage on two hard drives
Rack-compatible (1U), commercial industrial design
HDMI and VGA output
1080p and 4K display option
USB mouse control
Works with the Alarm.com website and app for remote viewing of recordings
Included accessories
Stream Video Recorder
Power Adapter
Quick Start Guide
USB Mouse
Specifications
Recording Channels
Up to 16 cameras
Video output
16 channels @ 1080p
Incoming bandwidth
160 Mbps
Outgoing bandwidth
256 Mbps
HDMI max output *
4K (3840 x 2160) 60 Hz
VGA max output *
Full HD (1920 x 1080) 60 Hz
Local display capabilities
Live view, playback, clip export
Compatible cameras
ADC-V522IR, ADC-V523/523X, ADC-V515, ADC-V622, ADC-V722W, ADC-V723/723X, ADC-V724/724X, ADC-VC725, ADC-VC726, ADC-VC736, ADC-VC825, ADC-VC826, ADC-VC836, ADC-VC727P ADC-VC827P, ADC-VC847PF, ADC-VC728PF, ADC-VC838PF, ADC-VS123/NV432-V2
Speed control
1x, 4x, 8x
Hard disk drive (HDD)
2 SATA interfaces, up to 8 TB per interface
Ethernet connection
RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
USB interface
1 x USB 2.0; 1 x USB 3.0
Power adapter
12 V DC ≤ 40 W
Dimensions (W x D x H)
15.2 x 12.4 x 2.0" (385 x 315 x 52 mm)
Operating temperature
14°F – 131°F (-10°C – 55°C)
Operating humidity
10% – 90% (non-condensing) RH
Weight (without HDD)
≤2.2 lbs. (1 kg)
Installation
Rack-mount (1U) compatible
Compliance
UL Listed
LED guide
LED label
LED status
Description
Green Power LED
On
Powered on
Green Power LED
Off
Powered off
Red Status LED
Blinking
Active
Red Status LED
Off
Idle
Green Network (TX / RX) LED
Blinking
Active intranet connection
Green Network (TX / RX) LED
Off
No active intranet connection
tyler
(Tyler G)
April 16, 2024, 3:12pm
4
ADC-CSVR126 Troubleshooting
How To Factory reset an ADC-CSVR126 to its default settings
The ADC-CSVR126 can be factory reset using its local interface.
Caution: All footage and programming is removed from the device after it is factory reset.
Software factory reset process
The local interface on the System page.
Log into the local interface.
Click Menu
Click System.
Click Factory Reset.
If a password is set for the local display:
In the Password field, enter the password. More information on password set up here.
Click Next.
After the reset is complete, re-enroll the ADC-CSV…
