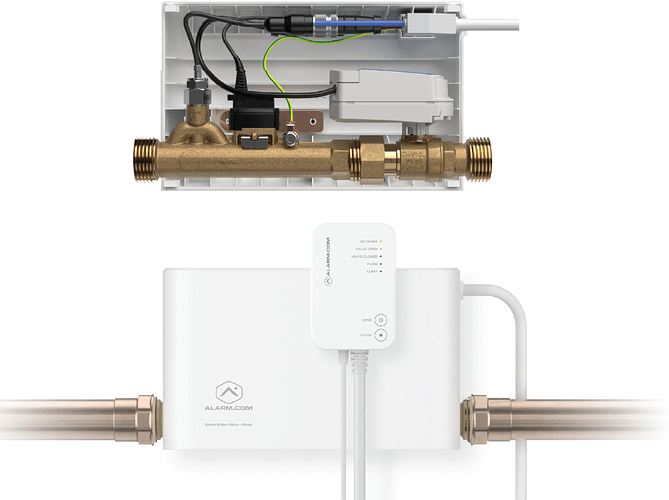

Smart Water Valve+Meter ADC-SWM150

The Smart Water Valve+Meter uses cutting-edge technology to monitor your water usage and detect leaks of any size, anywhere in your home. Whether it’s a burst pipe or a dripping faucet, have peace of mind that your home is protected against water damage.

Set up rules to automatically shut off your main water supply when a leak is detected by the Smart Water Valve+Meter or an water sensor (sold separately, not required). Get informed about your water consumption and take action to lower your water usage.


  • Whole-home leak detection
  • Water consumption monitoring
  • Automatic water damage prevention
  • Open / close water valve remotely
  • Automatically shut off the water when paired with a water sensor
  • Modular design
  • Z-Wave Plus communication
  • Z-Wave S2 security protocol

Included accessories:*

  • ADC-SWM150 Control Unit
  • Brass valve and meter
  • Plastic enclosure
  • Actuator
  • Mounting plate
  • Drywall anchors & screws (x2)
  • Cable ties (x3)
  • Power adapter
  • Installation guide

Note : Additional parts required: Installation will require additional fittings to connect the ends of the valve to the pipe. The type of fittings needed will depend on the existing pipe size, material, and threading type as well as applicable plumbing codes.


Power 100-240 VAC (50/60 Hz)
Operating Temperature 14°F to 185°F (-10°C to 85°C)
Operating Humidity 0% to 95% non-condensing
Requirements For indoor use only, system, Expansion tank for water heater
Valve Size: 1", Threads: Male NPT
Control Unit Dimensions 2.75 x 4.0 x 1.25” (6.99 x 10.2 x 3.18 cm)
Meter and Valve Dimensions (with Enclosure) 11 x 5.75 x 3.75" (27.9 x 14.6 x 9.53 cm)
Actuator and Valve Dimensions 4.5 x 2.0 x 3.75" (11.43 x 5.08 x 9.53 cm)
Maximum Compatible Pipe Size 1.25" (3.175 cm)
Power Supply Cable Length 19.7’ (6 m)
Plumbing Certifications ICC-ES-PMG (compliance with NSF 61 and NSF 372) Massachusetts Accepted Plumbing Products Registry

Adhere to all relevant local codes and ordinances as they pertain to the Smart Water Valve+Meter. You are required to consult local plumbing codes and have appropriate licensing for the installation of this device
