How To Setup a Linear Z-Wave Garage Controller

Linear Z-Wave Garage Controller

gd00z
The Linear Z-Wave Garage Controller connects directly to your Garage Opener and communicates with your panel via Z-Wave to allow for remote access and automation via Alarm.com.

When considering the Linear GD00Z Garage Controller, keep in mind that it is a Z-Wave device and will likely require additional Z-Wave devices to communicate successfully and consistently. More on setting up a Z-Wave network can be found here.

Garage door opener compatibility

The Linear Z-Wave Garage Door Controller is compatible with nearly all non-MyQ garage door openers with safety eyes.

Exceptions include:

  • Genie PowerMax 1500
  • Genie TriloG 1200 & 1500
  • Genie IntelliG 1000 & 1200
  • Aladdin Connect-enabled motors

*Additional notable exceptions can be found here*

Caution : Any opener with a MyQ logo or Craftsman Assurelink logo is not compatible with this device, and a LiftMaster remote solution should be used instead.

Which Linear Z-Wave Garage Control models are compatible with Alarm.com?

Currently, Linear Z-Wave Garage models GD00Z-5 and lower are expected to work on Alarm.com. However, the GD00Z-2 is specifically branded for ADT and may have some proprietary features.

Alarm Panel Compatibility

Panel type Minimum version required
2GIG GoControl Panel 1.13 +
2GIG GC3 Panel 3.0.2+
DSC Impassa Module 181b +
DSC iotega All
DSC PowerSeries Neo All
Interlogix Concord 4 Module 183a +
Interlogix NX Module 183a +
Interlogix Simon XT/XTi Module 183a +
Qolsys IQ Panel Panel 1.6.1 +
Qolsys IQ Panel 2 / IQ Panel 2 Plus Panel 2.2.1 +
SEM - Honeywell/ADEMCO Vista All
SEM - DSC PowerSeries All

Enrolling and Installing the Linear Garage Opener

For physical installation of the device, you will want to follow the included directions.
The installation manual for the GD00Z-4 can be found here.

After following all installation instructions, you will want to test the unit to ensure proper functionality.

To Add/Delete the Linear opener:

  1. Put the Z-Wave controller into Add/Delete Mode.

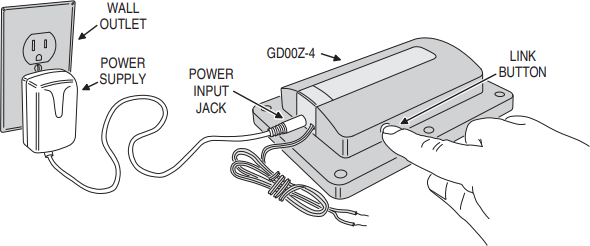

  2. Press and release the link button on the GD00Z-4.
  3. Verify that the GD00Z-4 was recognized or cleared by the Z-Wave controller.

Linear_Z-Wave_link

Its a good idea to pair the Linear Opener with the panel first, before mounting the Linear opener. Some additional steps:

  1. Begin with the garage controller within 6 feet of the panel or module.
  2. Delete the garage controller from the Z-Wave network.
  3. Place the panel into Add Mode and trigger the garage controller.
  4. Wait two minutes before locally operating the device.
  5. Verify that the garage controller shows up on the Alarm.com website and responds to open/close commands.
  6. Move the garage controller to its final location and run a Network Rediscovery.

To enroll a Linear Z-Wave Garage Controller into a Z-Wave Network:

  1. Put the Z-Wave controller into Add Mode.
  2. Press and release the link button on the GD00Z.
  3. Verify that the GD00Z was recognized by the Z-Wave controller.

To delete a Linear Z-Wave Garage Controller from a Z-Wave Network:

  1. Put the Z-Wave controller into Delete Mode.
  2. Press and release the link button on the GD00Z-4.
  3. Verify that the GD00Z was excluded by the Z-Wave controller.

To factory reset a Linear Z-Wave Garage Controller (GD00Z):

The reset process should be performed after the device has been deleted from the Z-Wave network. The reset process causes the GD00Z to forget its network information, but it does not remove it from the Z-Wave controller (i.e., panel/module).

  1. On the GD00Z, quickly press the link button five times in a row.
  2. The GD00Z will sound a short beep, flash several double red lights, and then sound a long beep when successfully reset.

Troubleshooting - Remote commands are not opening or closing the garage door attached to the Linear Z-Wave Garage Controller

There are multiple reasons why the Linear GD00Z might not be able to open or close the garage door using remote commands. As a general rule, the GD00Z device beeps/flashes any time it is attempting to open or close the garage door.

If it does not beep and flash, this could indicate Z-Wave communication issues or some other issue with the device. Follow the steps below to troubleshoot these possibilities.

Important : Between each of these steps, send a remote command to see if the previous step resolved the issue. A remote command would be a command sent through the Alarm.com account or via the Qolsys IQ panel (if eligible).

1. Service Plan
Verify that you have the correct service plan that incorporates Garage Door Control. Through Surety that would be the:

  • Surety Home plan
  • Surety Complete plan

2. Z-Wave Network Correct
Verify that Z-Wave communication to and from the Linear Z-Wave Garage Controller device is generally working. If the Linear Z-Wave Garage Controller does not flash when the remote command is sent, then there is likely a Z-Wave communication issue.

3. Garage Status Update
Verify whether the garage door status changes on the Alarm.com Website and app after an attempt to open and close the garage door. This can be through remote command or by opening/closing the garage door via the wall button.

  • If failling, Verify that the included tilt sensor is attached to the garage door.
  • Attempt a re-sync of the tilt sensor with the Linear Z-Wave Garage Controller.
    • Press and hold the link button on the Linear Z-Wave Garage Controller for 7-8 seconds until a short beep is heard.
    • Open/close the garage door opener locally (with remote/wall button) so that the sensor moves. If it re-syncs, you should hear an additional beep.
  • Delete, factory reset, and re-add the device if still failling.

4. Correct Installation
Verify that the GD00Z device is wired into the garage door opener (i.e., the motor) properly. Refer to the manual assoicated with your specific GD00Z model.

Verify that the Garage Door Opener (motor) is compatible with the GD00Z.

  • LiftMaster, Chamberlain, Craftsman and related brands of garage door openers with a round yellow learn button and/or a MyQ/Assurelink logo do not work with the GD00Z.

5. Delete, factory reset, and re-add the device.

  1. Delete the device from the alarm panel
  2. A factory reset clears the network information and can be performed by quickly pressing the Z-Wave Link button on the Linear Z-Wave Garage Controller five times in a row. There is a short beep, several double red flashes, and finally a long beep to indicate successful reset.
  3. Re-add the device.
