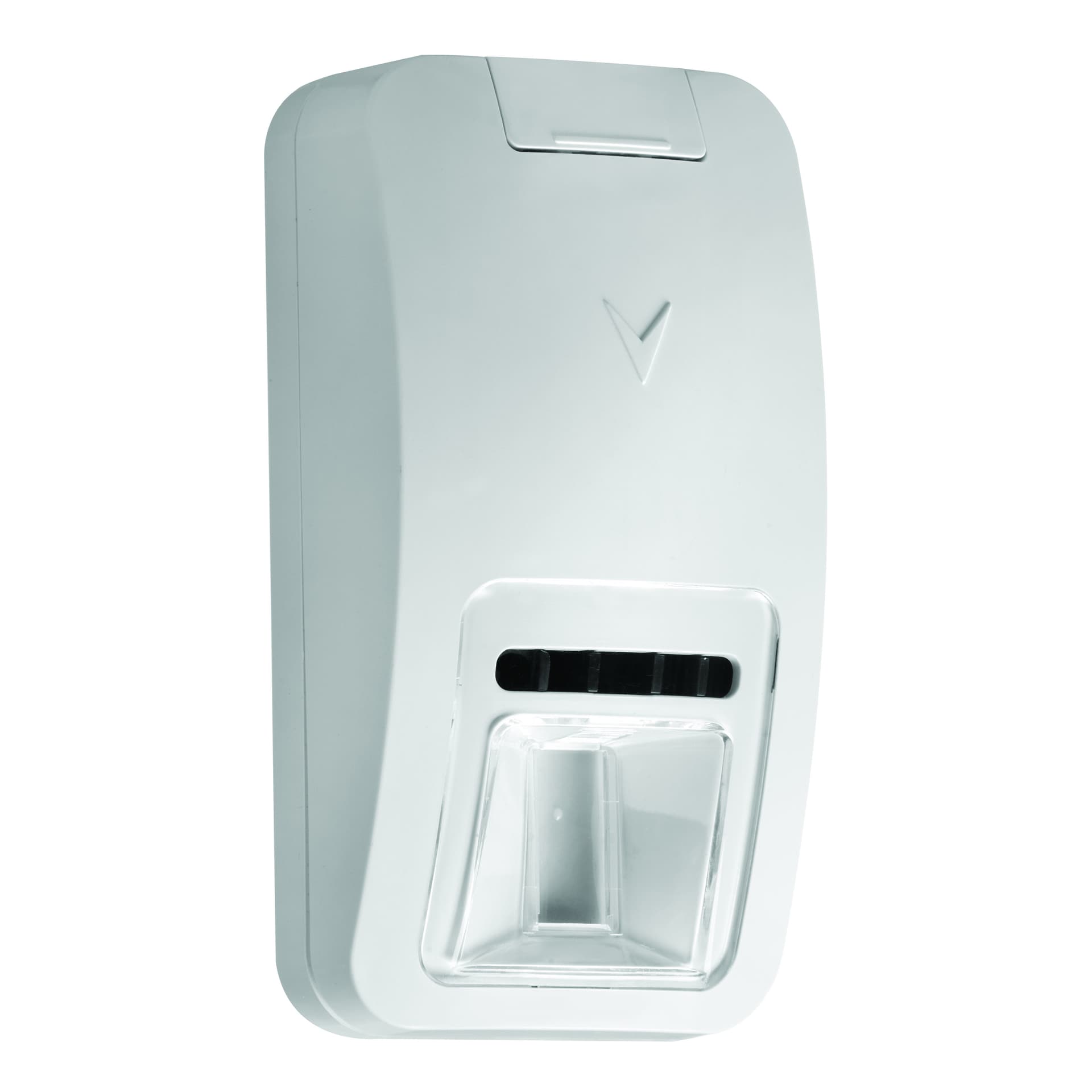

PowerG Wireless Dual Technology (Mirror Optic & Microwave) PIR Motion Detector PG9984P

The PG9984P is a PowerG 2-way wireless PIR/ Pet immune motion detectors utilizing Target Specific Imaging™ to distinguish between human beings and pets weighing up to 88lb while reduces false alarms by using True Motion Recognition.

Compatible with IQ Panel 4, IQ4 Hub, IQNS, IQ Pro, DSC Neo

Learn more about PowerG

Manufacturer DSC
Part Number PG9984P
Dimensions 115x60x48mm (4 1/2 x 2 5/16 x 1 15/16")
Wireless Signal Range 2000-2500 ft Open Air
Signal Alarm, alarm restore, tamper, tamper restore, supervisory, low battery, Sensor Mask
Wireless Protocol PowerG
Sensor Range 33ft
Horizontal Sensing Angle 90°
Relative Humidity Up to 93% Max
Operating Temerature -10˚C – 55˚C
MW Max Coverage 33ft
MW Min Coverage 16ft

Mounting the PF9984P

  1. Keep away from heat sources.
  2. Do not expose to air drafts.
  3. Do not install outdoors.
  4. Avoid direct sunshine.
  5. Do not install near high voltage electrical lines.
  6. Do not install behind partitions.
  7. Mount on a solid stable surface.
    Warning! Do not partially or completely obscure the detector’s field of view.

Programming the PG9984P with the Qolsys IQ Panel

  1. Place the IQ Panel into Auto-Learn Mode. To do so, at the panel navigate to:
  • Settings
  • Advanced Settings
  • Enter your Installer or Dealer Code
  • Installation
  • Devices
  • Security Sensor
  • Auto Learn Sensor
  1. With the panel in Auto-Learn Mode, open and close the door to trip the sensor.
  2. Program the sensor as needed. Then Click Add to finalize programming.

Programming Instructions for Qolsys PowerG sensors like the PG9914 can be found here:
