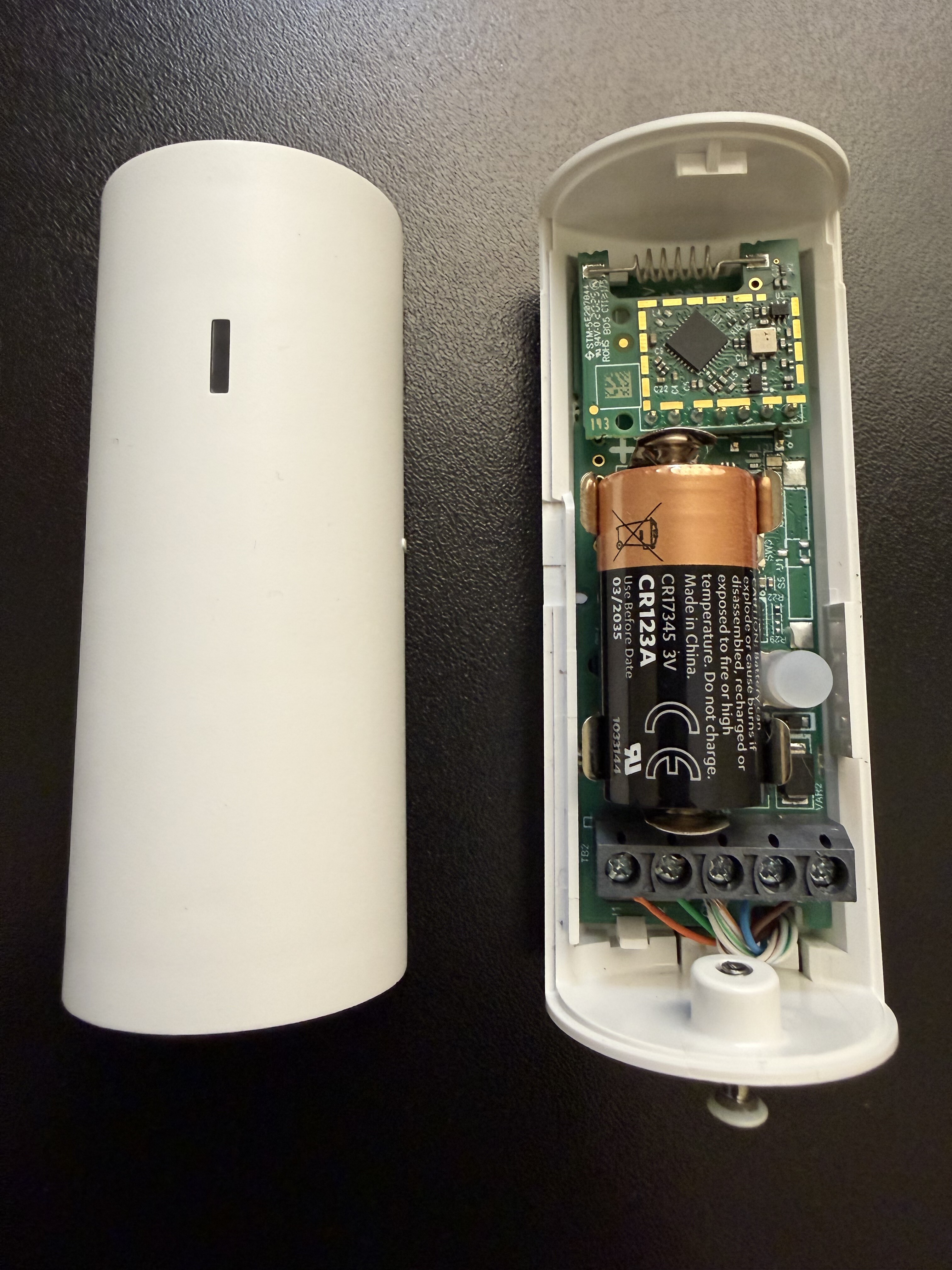

PowerG+ Input/Output Module (PGP-IO9)
The PowerG+ Input/Output Module (PGP-IO9) gives you more control and flexibility with your installations by providing 4 inputs(zones) or 2 inputs and 2 outputs(PGM). Programmed outputs can be controlled through your alarm.com app or through an IQ Panel 4(4.6.1+) or an IQ Panel 5.
You can program this device for 4 input(zones). This means you can use it as a type of battery powered wireless zone expander which is great for a garage separated from the house.
The PGP-IO9 outputs are made for devices that have dry-contact control inputs(no power). You can add external power using a power supply. Maximum power than can run through the relay is 15VDC 1A.
Use cases – alarm triggers
- Self-powered wired sirens
- Long range radio transmitters
- Light / flash activation in case of alarm
- Activation of buzzers
- Fog and smoke generators
- In the event of fire – trip doors (strikes, mags, dog-doors, gates (driveway), overhead doors(mechanical)
- Trip fire suppression systems
- Remote triggers off the universal communicators, for example, 4010 (inputs on the modules)
- Integration with triggers for video system
- Integration with lock-down type of devices
- Integration with access control
- Integration with all call audio systems (evacuation as an example)
- Local siren/strobe notification triggers (24 hour emergency zones)
Use cases – automation
- Manual control of lights
- Opening of automatic driveway and pedestrian gates
- Opening and closing garage door
- (POWERMASTER) Automatic light control based on brightness sensing for gardens, driveways or night
lights for perimeter surveillance) - Lights activation with zone tracking activation
- (POWERMASTER) Thermoregulation with boilers (manual and automatic) with temperature sensor
- Thermoregulation of pellet stoves (manual and automatic)
- Thermoregulation of air conditioners
- Motor control for roller shutters, awnings, darkeners (timed relay required)
- Control Solenoid valves (fire – gas closing, flooding – water closure)
- Remote operation of anti-icing systems of the pipes of mountain houses
| Communication Protocol | PowerG |
| Maximum Tx Power | +14 dBm @ 868 MHz, +14 dBm @ 915 MHz |
| Modulation | GFSK |
| Battery Type | 3 V Lithium CR123A manufactured by GP or Duracell only |
| Battery life | 3 years (typical use) for two inputs and two outputs configuration. 5 years (typical use) for four inputs configuration |
| Low battery threshold | 2.4 V at room temperature 25°C (77°F) |
| Nominal operating voltage | 3 V |
| Minimum current | 2 uA |
| Maximum current | 70 mA |
| Operating temperature | -10°C (14°F) to 55°C (131°F) UL/ULC verified range: 0ºC (32°F) to 49ºC (120°F) |
| Storage temperature | -20°C (-4°F) to 70°C (158°F) Not UL/ULC evaluated |
| Relative humidity | Up to 93% non-condensing |
| Inputs | Wire Resistance: Up to 100 Ω. Wire Capacitance: Up to 1nF (maximum distance of 10 meters from the unit for 20 to 22 AWG cable). EOL supervision resistors (optional): 5.6 KΩ, can be field calibrated within the range of 2.5 KΩ to 12 KΩ. Circuits are power limited/Class 2 wiring |
| Outputs | Up to 15VDC (OFF state, open loop, ~20uA leakage current). Up to 1A (ON state, close loop, ~0.25V terminals dropout). |
| Dimensions (LxWxD) | 89 mm x 37 mm x 30 mm (3.5 in. x 1.5 in. x 1.2 in.) |
| Weight (including battery) | 53 g (1.9 oz) |
| Color | White |
| Auxiliary Input EOL Resistor | 5.6 KΩ Note: For UL/ULC Listed applications use Model EOLR-2 |
