How to connect an Alarm.com V723 Outdoor Camera

How To
,
1

1080p Outdoor Wi-Fi Camera (ADC-V723)

Data_sheet_V723_image
Data_sheet_V723_image697×415 45.9 KB

Pre-installation checklist

  • ADC-V723 camera (included).
  • AC power adapter (included).
  • Wireless (2.4 or 5 GHz) connection to broadband (Cable, DSL, or Fiber Optic) internet.
  • A computer, tablet, or smartphone with Wi-Fi is required if the router does not have the Wi-Fi Protected Setup (WPS) feature.

There are two options for connecting the V723 to the Wi-Fi network: Access Point (AP) mode or Wi-Fi Protected Setup (WPS) mode. Use WPS mode if you have easy access to the customer’s router and the router has the WPS feature enabled.

Note: Some Internet Service Providers disable the WPS feature on their routers. AP mode is the most reliable method for installing this device.

In the box

  • V723 camera
  • Mounting plate
  • Power supply (10 feet)
  • Installation guide
  • Wall anchors & screws (x2)

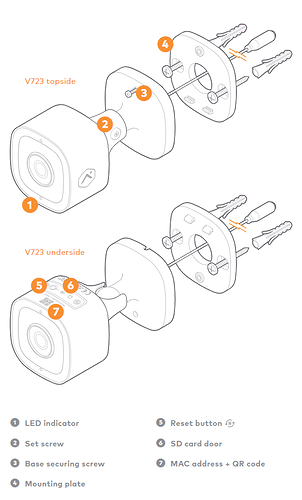

Overview

Overview_V723
Overview_V723649×1073 124 KB

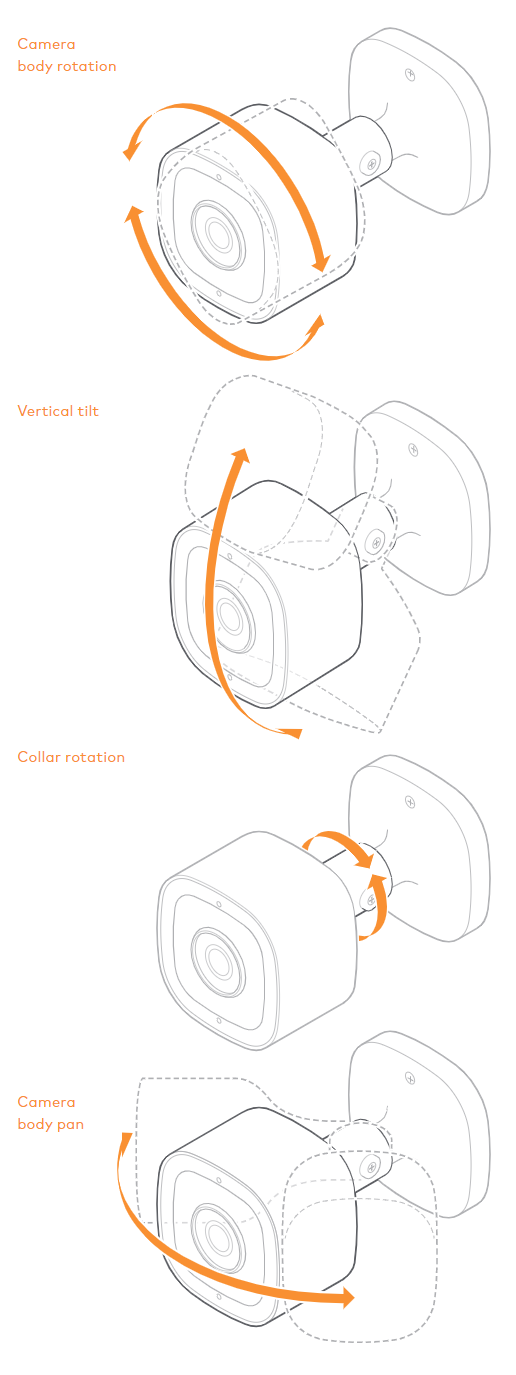

Articulation

Articulation_V723
Articulation_V723516×1375 120 KB

Installation

Physical installation recommendations
  • In a shaded area or under cover (e.g., under an eave)
  • Mounting bracket installed on a vertical surface
  • Camera face oriented with a downward tilt
  • SD card door facing downwards
Alarm.com- mobile app installation wizard
  1. Log in to the mobile app.
  2. Tap the navigation menu icon.
  3. Tap + Add Device.
  4. Tap Video Camera.
  5. Tap ADC-V723 (If you do not see the Add Device option, please use the AP mode or WPS mode instructions below to complete your installation).
  6. Follow the on-screen instructions to finish adding the camera.

AP mode

Important: To ensure sufficient Wi-Fi signal, complete these steps with the camera near its final location but prior to mounting.

  1. Connect the camera’s AC power adapter and plug it into a non-switched outlet.
  2. The camera’s LED will begin to flash white. If the LED is not white after two minutes, hold down the Reset button and release when the LED begins to flash white (about 6 seconds).
  3. On a Wi-Fi enabled device, connect to the wireless network ADC-V723 (XX:XX:XX) where XX:XX:XX is the last six digits of the ADC-V723’s MAC address, which is located on the bottom of the camera or on the packaging.
  4. On the same device, open a web browser and enter http://v723install or 192.168.1.1 in the URL field. Follow the on-screen instructions to add the ADC-V723 to the Wi-Fi network:
    • Click Scan.
      AP_mode_new_start

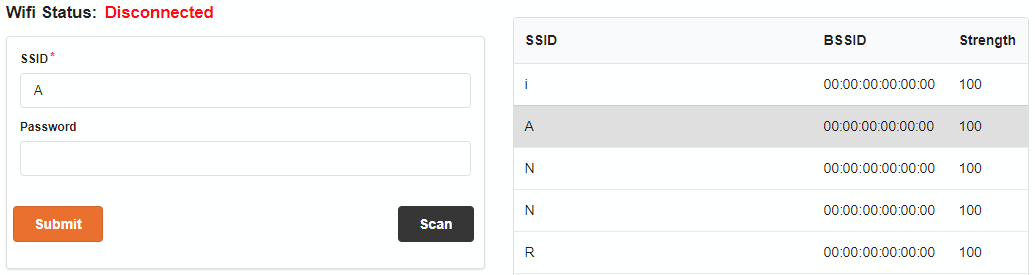

    • Click to select the desired network. The SSID field will automatically populate with the selected network name.
      AP_mode_new
      AP_mode_new1035×275 5.86 KB

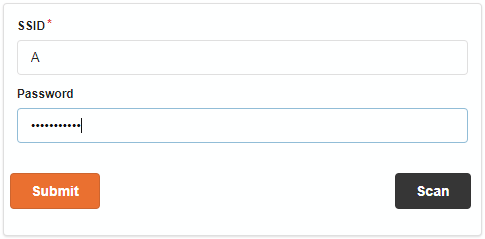

    • In Password , enter the Wi-Fi password.
      AP_mode_new_final
  • Click Submit. The LED will be solid green when the connection is complete.
  1. Add the device to the account by using the Mobile app Video Installation Wizard, or by using a web browser and entering the following web address: www.alarm.com/addcamera
  2. Select the camera from the video device list or type in its MAC address to begin adding the camera. The camera’s MAC address is located on the bottom of the camera or on the packaging.
  3. Follow the on-screen instructions to finish adding the camera. You may configure camera settings using the fAlarm.com Website.

You can now power down the camera and install it in its final location using the included hardware.

WPS mode

Important: To ensure sufficient Wi-Fi signal, complete these steps with the camera near its final location but prior to mounting.

  1. Connect the camera’s AC power adapter and plug it into a non-switched outlet.
  2. Hold down the Reset button on the bottom of the camera and release when the LED begins to flash blue (about 3 seconds).
  3. Activate the WPS Mode on the router. The router will begin to connect to the wireless network. The LED will be solid green when the connection is complete.
  4. Add the device to the account by the mobile app Video Installation Wizard, or by using a web browser and entering the following web address: www.alarm.com/addcamera
  5. Select the camera from the video device list or type in its MAC address to begin adding the camera. The camera’s MAC address is located on the bottom of the camera or on the packaging.
  6. Follow the on-screen instructions to finish adding the camera.

You may configure camera settings from the Alarm.com Website. You can now power down the camera.

3

LED reference guide

LED pattern Description
OFF Power off
Solid Green Connected to Alarm.com
Flashing Green Local network connection
Alternating Green and Red Camera reverting to factory default settings
Solid Red) No local or Internet connection
Flashing Red Power on, camera booting
Flashing Blue WPS mode
Flashing White Wi-Fi access point mode
4

Troubleshooting

  • If you have issues connecting the camera to the account, power cycle the camera and try again.
  • If issues persist, reset the camera to factory defaults. Press and hold the Reset button located on the bottom of the camera until the LED is flashing Green and Red (about 15 seconds), then release the button. The camera will reboot with factory defaults.
    • You may need to unscrew the SD card door to get at the Reset button easier.

Important: If the camera was previously installed to an Alarm.com account, it will need to be deleted before it can be installed again. If this is the case, only the original user or dealer can do this.

  • Prolonged exposure to sunlight in extreme conditions may impact the camera’s performance. The optimal installation location is in a shaded area (e.g., under an eave).
