DSC PowerG Recessed Door/Window Sensor PG9307

Product Docs
,
1

The DSC PowerG Recessed Door/Window Sensor PG9307 is compatible with all Qolsys brand IQ Panels with a PowerG radio, including the IQ Panel 4 IQP4001. It offers PowerG encrypted technology to protect wireless signal and can be hidden in the door or frame so it won’t affect your decor.

Learn more about PowerG

Sensor Specs
Manufacturer DSC
Part number PG9307
Dimensions 2.66 inches x 0.75 inches
Wireless signal range 2000-2500ft in open air
Signals Alarm, alarm restore, tamper, tamper restore, low battery
Transmitter frequency USA: 912-919 MHz
Wireless protocol PowerG
Battery life 10 years (with typical use)
Operating Temperature -10°C to 55°C (32°F to 122°F)
Storage Temperature -40-80C
Battery 3V Lithium CR-2
Low Battery Threshold 2.5V

How to Install the PG9307

Physical installation of the PG9307 recessed sensor should follow the manufacturer’s instructions found in the product installation manual. Installation steps from the PG9307 manual are below:

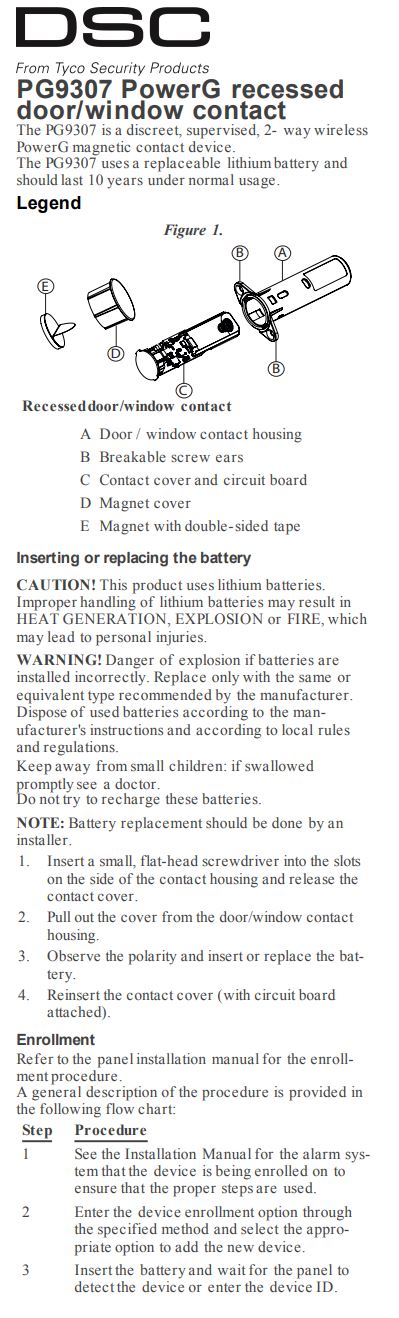

manual1
manual1399×1318 111 KB
manual2
manual2396×1406 138 KB
manual3
manual3383×1429 91.8 KB
manual4
manual4404×1363 85.3 KB
manual5
manual5414×1420 166 KB

A link to the PG9307 full manual can be found here:

Mounting the PG9307

Sensor Installation

  1. Choose the installation location. This can be on the top of the door, or on the side of the door. Either in the frame or the door, depending on the material in use.
    Install the sensor by the following steps:
  2. Use a 3/4 drill bit to slowly drill a 3/4 inch hole for
    the door/window contact in the door frame.
  3. Fasten the contact housing to the mounting surface
    with the two screws and insert the cover. If there
    is no 3mm gap available between the door and the
    frame, two step drilling is necessary. Using a
    22mm tool, drill a 2mm shallow, followed by a
    70mm deep hole with a 19mm tool. Break the slot
    ears, clean the sharp edges and insert the device.
    The device is recessed inside the frame, not interfering with the door.

Magnet Installation
Install the magnet by either of the following options:

  1. By drilling:
    a. Use a 3/4 inch drill bit to create a 15mm deep hole.
    b. Peel off the double-sided tape on the magnet and stick it inside the magnet cover (part D).

  2. By using the double-sided tape without the magnet housing:
    a. Peel off the double-sided tape on the magnet and stick it on the door/window

NOTE: Option 2 is possible only when there is a minimum gap of 2 mm between the door and the door frame.

Optional: Use a sticker on both the contact cover and the magnet cover to match the color of the door or the door frame

Programming thePG9307 with the Qolsys IQ Panel

  1. Place the IQ Panel into Auto-Learn Mode. To do so, at the panel navigate to:
  • Settings
  • Advanced Settings
  • Enter your Installer or Dealer Code
  • Installation
  • Devices
  • Security Sensor
  • Auto Learn Sensor

  1. With the panel in Auto-Learn Mode, open and close the door to trip the sensor.

  2. Program the sensor as needed. Then Click Add to finalize programming.

Programming Instructions for Qolsys PowerG sensors like the PG9307 can be found here:
