Commercial Stream Video Recorder ADC-CSVR2008P

Overview Commercial Video is a powerful, easy-to-use solution for commercial properties that integrates with the for Business platform. As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the mobile app or website—anytime, anywhere.

The CSVR2008P Pro Series Commercial SVR is a cloud-managed storage solution for 24/7 local video recording. Continuously record up to 16 camera streams at up to 4MP resolution when using Pro Series cameras. The CSVR2008P offers a built-in PoE switch to power and connect PoE cameras.

Note: The Pro Series CSVR is compliant with Section 889 of the NDAA and is not produced by any entity identified on the FCC’s Covered List.

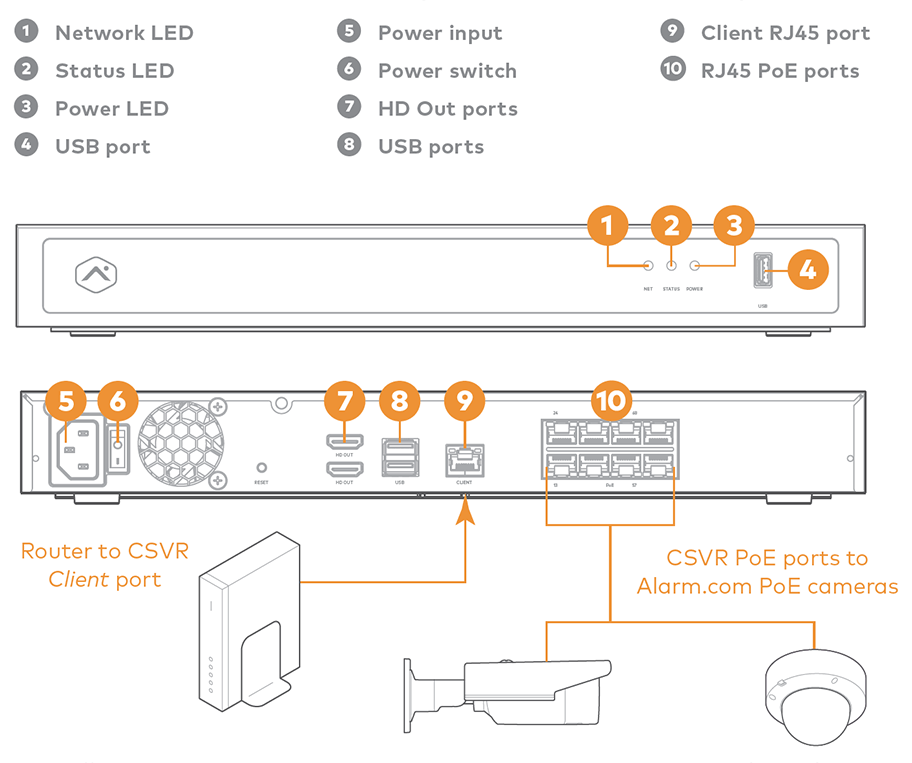

  • Simplified networking with dedicated camera PoE ports
  • Local storage on one or two hard drives
  • Rack-compatible (1U) industrial design
  • Outputs for up to 2 4K monitors
  • USB 3.0 outputs for fast video clip export

Included accessories

  • AC power adapter
  • Ethernet cable
  • Rack mount ears


Recording channels Up to 16 cameras
Video input 16 channels @ up to 4MP (2688 x 1520)
Local display capabilities Live View, Playback, Clip Export, Archive Export
Local display output 2x HD Out, up to 3840 x 2160
Local clip export 1x USB 3.0 (front), 2x USB 3.0 (rear)
Recommended PoE cameras ADC-VC725, ADC-VC726, ADC-VC736, ADC-VC825, ADC-VC826, ADC-VC836, ADC-VC727P, ADC-VC827P, ADC-VC728PF, ADC-VC838PF , ADC-VC847PF
Other supported cameras Third-party PoE cameras (ONVIF S & VAPIX) Note: For a full list of compatibility requirements for Third-Party cameras, see below. Indoor cameras connected via Ethernet: ADC-V523/523X, ADC-V622 Indoor/Outdoor cameras connected via Wi-Fi: ADC-V515, ADC-V523/523X, ADC-V723/723X, ADC-V724/724X Note: For best results, please connect the Wi-Fi cameras to the Smart Gateway (ADC-SG130) downstream from the SVR, or a high-performance Wi-Fi Access point upstream from the CSVR.
Supported HD Video Server ADC-VS123
Ethernet connectivity 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af RJ45 10/100 Mbps
Internal storage Up to 2x 3.5” HDD, SATA 6 Gb/s, 16TB each
Dimensions (WxDxH) 14.4 x 12.5 x 1.9” (36.6 x 31.6 x 4.8 cm)
Operating temperature 32 °F - 104 °F (0 °C - 40 °C)
PoE Power Budget 120 W
Max power consumption 200 W
Max weight 8.7 lbs (3.9 kg)
Compliance FCC Class A, IC, CE, UL Listed
Requirements Power: Standard electrical outlet

Network: Ethernet connection to broadband Internet

Peripherals (required to interact with a local display): USB mouse and keyboard|

Third-party camera model requirements

Communication Protocol Onvif Profile S or VAPIX user enabled
IP Protocol DHCP (static IPs cannot be used)
Compression H.264
Camera Communication Type Ethernet (Wired)

More information, including setup instructions for the CSVR can be found here:
