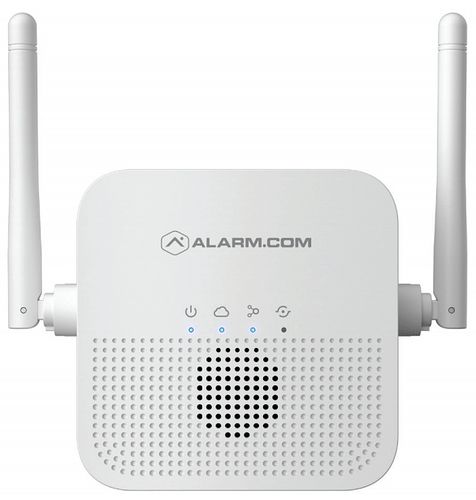

Smart Chime (ADC-W115C) - Data Sheet


Designed to work seamlessly with the platform, the ADC-W115C serves as a robust Wi-Fi extender and customizable wireless doorbell chime. Add the Smart Chime to an account when an in-home chime is not a feasible option during a doorbell camera installation. Simply plug the ADC-W115C into a wall outlet, pair with the existing router, add a doorbell camera, and enjoy boosted network signals that provide instantaneous chime notifications.

Note: The ADC-W115C can only be used as a Wi-Fi extender for video devices.


  • Wireless doorbell chime
  • Wi-Fi extender (2.4 GHz)
  • Adjustable chime volume
  • Customizable tones
  • Simple, plug-in installation
  • Remote management and troubleshooting

In the Box

  • ADC-W115C Smart Chime
  • Installation Guide


Wi-Fi Connection 802.11 b/g/n, 2.4 GHz
Wi-Fi Security WPA2
LED Indicators 4
Buttons WPS, Reset
Antennas 2
Wi-Fi Chime 1.5 W speaker, 77 dB
Operating Temperature 32°F to 104°F (0°C to 40°C)
Operating Humidity 10% to 90% (non-condensing) RH
Dimensions (H x W x D) With antennas 5.0 x 1.0 x 2.1” (12.7 x 13.0 x 5.4 cm)

Without antennas 3.3 x 3.3 x 2.1” (8.5 x 8.5 x 5.4 cm)|

LED indicators


LED pattern Description
Off Device powered off
Solid Blue Device powered on
Blinking Blue Device booting up


LED pattern Description
Off No local or Internet connection
Solid Blue Connected to Internet
Blinking Blue Local connection, no Internet
Blinking Blue (five quick blinks) Communication test initiated


LED pattern Description
Off No device connected to chime
Solid Blue Device connected to chime
Blinking Blue (three quick blinks) New device connected to chime


LED pattern Description
Off WPS mode not enabled
Blinking Blue (slowly) WPS mode enabled to connect to router
Blinking Blue (rapidly) WPS mode enabled to connect to client device

Additional states

LED pattern Description
All LEDs blinking (escalating) Firmware upgrade in progress
All LEDs blinking (simultaneously) Reset in progress
