Overview

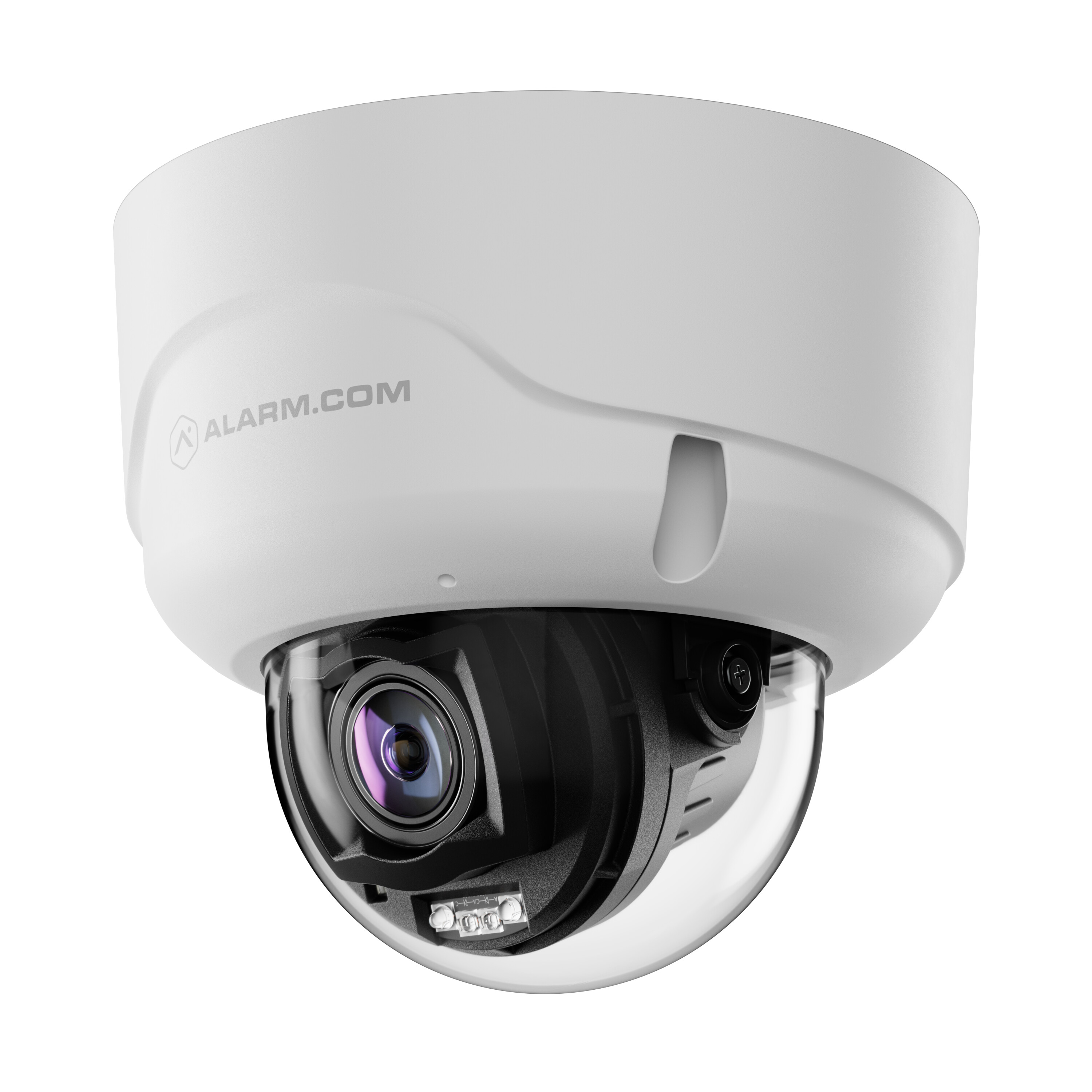

The Prism Series 8MP Varifocal Dome Camera (ADC-VC8498PA) secures properties day and night. Ultra HD resolution captures every detail, while VividNight™ technology delivers clear color video in low light. Proactive Video Deterrence with two-way audio helps prevent incidents before they escalate. Fully integrated with Alarm.com for Business, the Prism Series Dome provides reliable, high-performance video security.
Features
- 8MP Ultra HD Resolution
- VividNight™ Low-light color performance
- Remotely adjustable varifocal lens
- Built-in IR up to 40 meters (~131 feet)
- Integrated Video Analytics
- Onboard Recording with Smart View
- Two-Way Audio via external input/output setup
- Power over Ethernet only
- Rugged Housing — IP66, IK10, NEMA 4X
Included accessories
- Camera
- Mounting hardware
- Cable gland
- L-shaped wrench
Optional accessories
- ADC-VACC-AO-015 accessory cable (required for audio Line-in and Line-out)
Specifications
| Max resolution | 3840 x 2160 (8MP) |
| Image sensor | 1/1.8 SONY STARVIS 2 CMOS |
| Field of View Horizontal | 110.4° - 45.1° |
| Field of View Vertical | 57.9° - 25.4° |
| Field of View Diagonal | 133.9° - 51.8° |
| Range of motion | Pan: 350° Tilt: 80° Rotation: 350° |
| Remote varifocal control | Focal length, manual focus adjustment, autofocus |
| Low-light sensitivity | 0.02 lux @ F1.6 (Color) <0.005 lux @ F1.6 (B/W) 0 lux with IR on |
| IR range | Up to ~131 feet (40 meters) |
| Image adjustments | Flip, brightness, contrast, saturation, sharpness, exposure |
| Ethernet connection | 10/100 Mbps Ethernet (RJ-45) |
| Operating temperature IR Off | -35 to 60°C (-31 to 140°F) |
| Operating temperature IR On | -35 to 50°C (-31 to 122°F) |
| Operating humidity | Up to 98% RH (non-condensing) |
| Input voltage | IEEE 802.3af type 1 PoE |
| Power consumption Day - IR off | 9.6W |
| Power consumption Night - IR on | 12.4W |
| Dimensions: (LxWxH) | Ø 5.28 x 4.57 (13.4 x 11.6cm) |
| Weight | 2.18 lbs (0.99 kg) |
| Ingress protection | IP66, NEMA 4X |
| Impact protection | IK10 |
| Local Recording | SVR and Onboard Recording |
| Two-Way Audio | Full-Duplex with built-in mic. External speaker installation required |
| External speaker connection | Output: 3.5mm Mono Female Connector Input: 3.5mm Mono Female Connector |
Note : External audio requires use of the ADC-VACC-AO-015 (sold separately)
