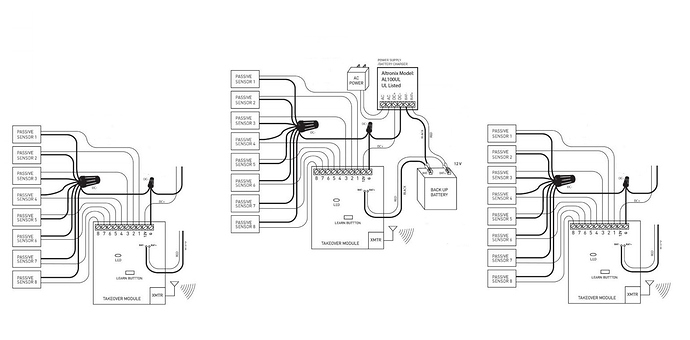

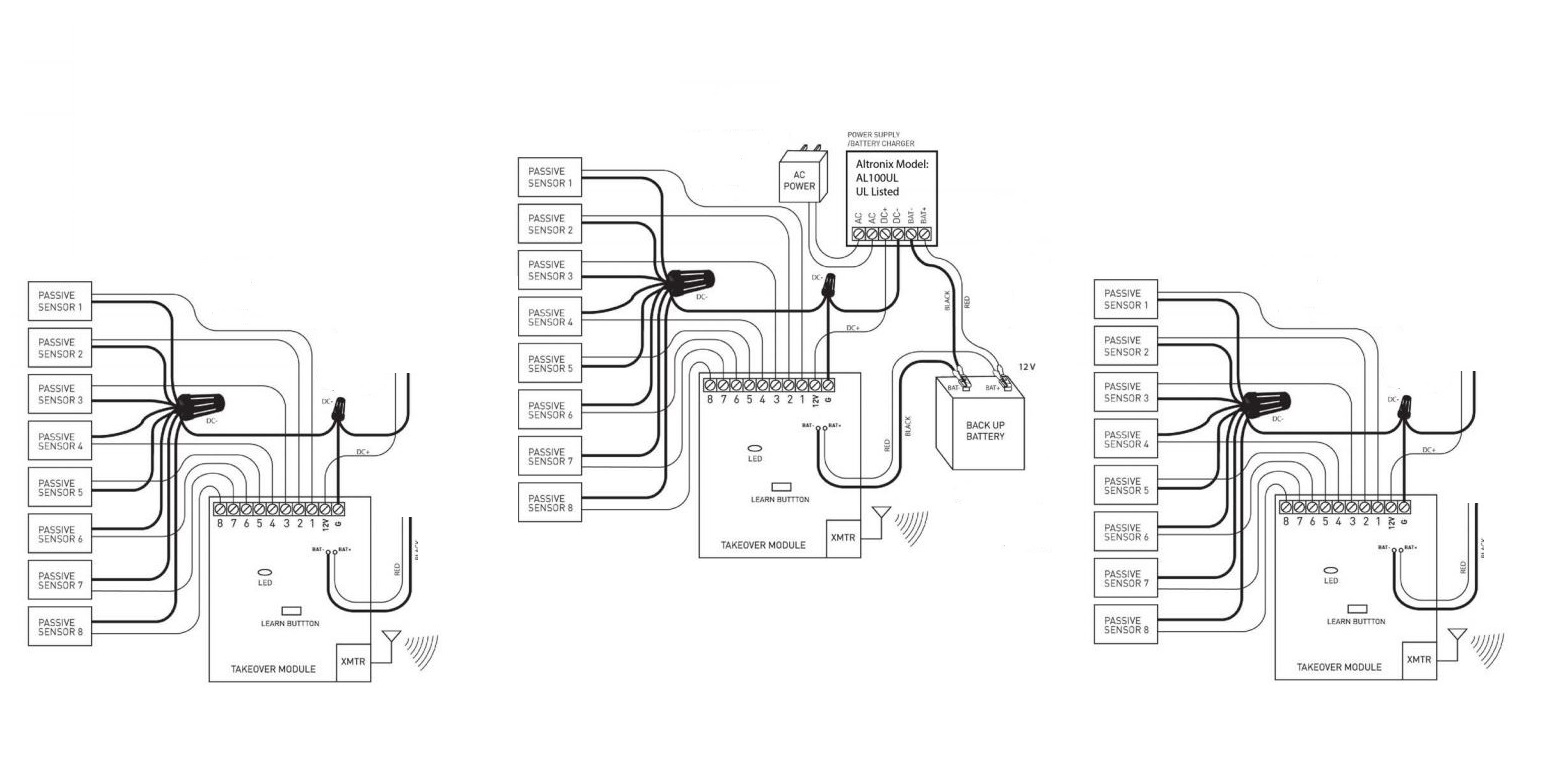

I’ve searched and I haven’t been able to find a diagram that shows how to wire multiple take modules together. This is going to be for a new construction home that is pre-wired for an alarm and I am going to be using the 2GIG Hardwire Conversion Kit along with 2 additional Take Modules (total of 3). Would someone be able to complete the attached diagram or provide notes for me please?
Happy to help! Multiple TAKE-345 modules would not wire together. They would all be wired in parallel the same way to the power supply and battery. In other words, just connect the other two the exact same way the first one is connected to the power supply and battery, in the same terminals.
Ground (G) on the Takeover module would connect to one end of your sensor circuits, all spliced together, then connected to DC - on the Altronix power supply. +12 V would connect to DC + on the power supply. You would have three of each connecting on the power supply.
The battery would either be shared (limits backup time a little bit) or a battery can be used for each. The battery connectors on the TAKE leads have a tab on top to connect additional leads.
