Overview
Alarm.com Commercial Video is a powerful, easy-to-use solution for commercial properties that integrates with the Alarm.com for Business platform. As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the Alarm.com mobile app or website—anytime, anywhere.
The CSVR2000P Pro Series Commercial SVR is a cloud-managed storage solution for 24/7 local video recording. Continuously record up to 16 camera streams at up to 4MP resolution when using Alarm.com Pro Series cameras.
Note: The Alarm.com Pro Series CSVR is compliant with Section 889 of the NDAA and is not produced by any entity identified on the FCC’s Covered List.
Features

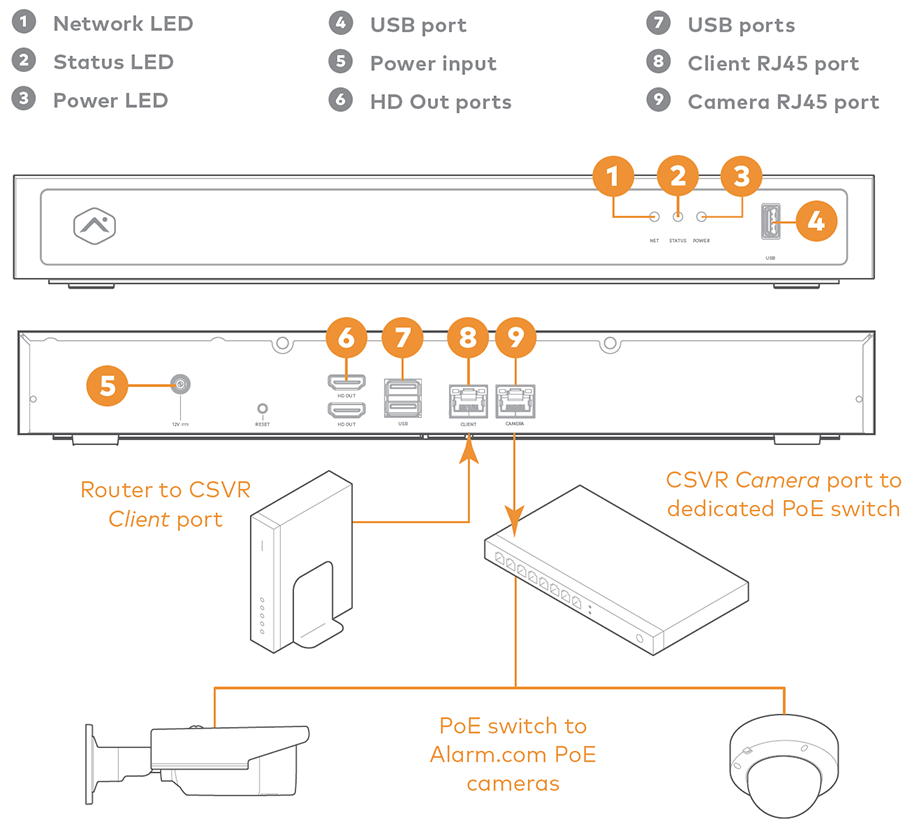

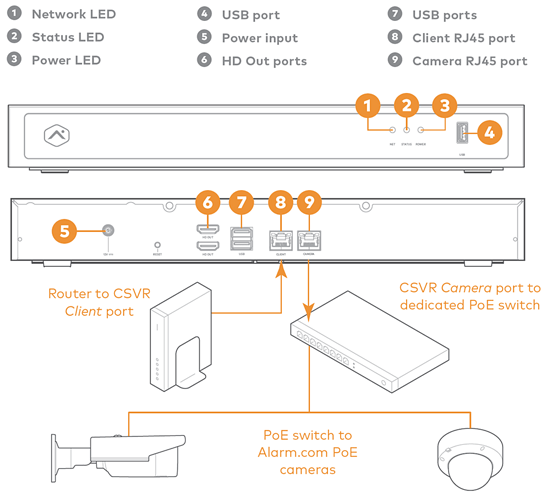

- Simplified networking with discrete RJ45 port for dedicated camera network
- Local storage on one or two hard drives
- Rack-compatible (1U) industrial design
- Outputs for up to 2 4K monitors
- USB 3.0 outputs for fast video clip export
Included accessories
- AC power adapter
- Ethernet cable
- Rack mount ears
Specifications
| Recording channels | Up to 16 cameras |
|---|---|
| Video input | 16 channels @ up to 4MP (2688 x 1520) |
| Local display capabilities | Live View, Playback, Clip Export, Archive Export |
| Local display output | 2x HD Out, up to 3840 x 2160 |
| Local clip export | 1x USB 3.0 (front), 2x USB 3.0 (rear) |
| Recommended Alarm.com PoE cameras | ADC-VC725, ADC-VC726, ADC-VC736, ADC-VC825, ADC-VC826, ADC-VC836, ADC-VC727P, ADC-VC827P, ADC-VC728PF, ADC-VC838PF , ADC-VC847PF |
| Other supported cameras | Third-party PoE cameras (ONVIF S & VAPIX) Note: For a full list of compatibility requirements for Third-Party cameras, see below. Indoor cameras connected via Ethernet: ADC-V523/523X, ADC-V622 Indoor/Outdoor cameras connected via Wi-Fi: ADC-V515, ADC-V523/523X, ADC-V723/723X, ADC-V724/724X Note: For best results, please connect the Wi-Fi cameras to the Smart Gateway (ADC-SG130) downstream from the SVR, or a high-performance Wi-Fi Access point upstream from the CSVR. |
| Supported Alarm.com HD Video Server | ADC-VS123 |
| Ethernet connectivity | 1x Client RJ45 10/100/1000 Mbps, 1x Camera RJ45 10/100/1000 Mbps |
| Internal storage | Up to 2x 3.5” HDD, SATA 6 Gb/s, 16TB each |
| Dimensions (WxDxH) | 14.4 x 12.5 x 1.9” (36.6 x 31.6 x 4.8 cm) |
| Operating temperature | 32 °F - 104 °F (0 °C - 40 °C) |
| Power adapter | 12 VDC, 60 W max |
| Max weight | 8.2 lbs (3.7 kg) |
| Compliance | FCC Class A, IC, CE, UL Listed |
| Requirements | Power: Standard electrical outlet Network: Ethernet connection to broadband Internet Peripherals (required to interact with a local display): USB mouse and keyboard |
Third-party camera model requirements
| Communication Protocol | Onvif Profile S or VAPIX user enabled |
|---|---|
| IP Protocol | DHCP (static IPs cannot be used) |
| Compression | H.264 |
| Camera Communication Type | Ethernet (Wired) |
More information, including setup instructions for the CSVR can be found here:
