2gig POTS Line Wiring Help Needed

Support
1

I have a gocontrol2 with internal pots line not the module… shouldn’t matter

I need to wire the pots line to a standard phone line.

The phone line does not require an RJ31X takeover block and I won’t be using one.

What I need is the Pinout or layout of the connector in the 2gig Pots Port so I can crimp a RJ45 connector that fits the 2gig port on to a RJ11 phone line wire.

From what I understand the ring and tip are the primary wires needed and are the center two wires on the 2gig pots connector but I don’t really want to guess at this.

so idk sometimes i say things confusingly…

I got a 2gig with pots
I got a phone line
Need to crimp a 8wire RJ45 connector on the 4 wire phone line to make the connection.

I emailed 2Gig info@2gig.com 10 days ago and no response yet

thanks

2

See the attachment below from 2Gig regarding POTS wiring. You are correct in the Ring and Tip description, you also need the return line.

Keep in mind this isn’t a necessary secondary to a cell communicator, and it requires a land-line phone account which may otherwise not be needed.

POTS-Pin-Outs-Wiring-v1-1.pdf (257 KB)

3

Perhaps it is just me, but wouldn’t it be much easier to simply use a 2GIG-GCPOTS module which runs new from $13-$19?

http://www.homesecuritystore.com/alarm-systems/alarm-accessories/alarm-modules/2gig-technologies-2gig-gc-pots?gclid=CjwKEAiA2JqkBRDshIOY_9eMghkSJABvNd1QIXlAHWAf9YmwWh018BXrsHRk5-E48i1WhiiGEHZ86xoCMHbw_wcB

http://www.newegg.com/Product/Product.aspx?Item=N82E16881169031&cm_re=2GIG-GCPOTS--81-169-031--Product

4

wow … thanks so much

so many searches and I found nothing like your pdf

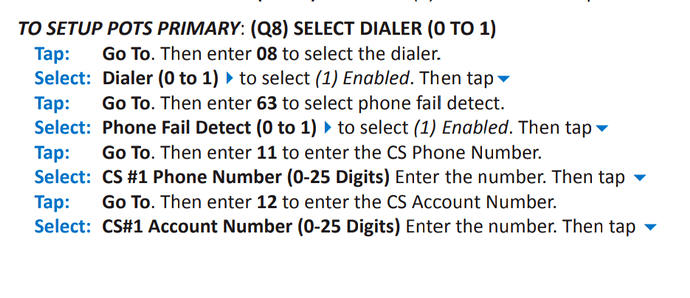

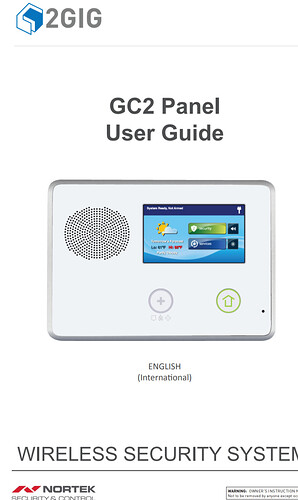

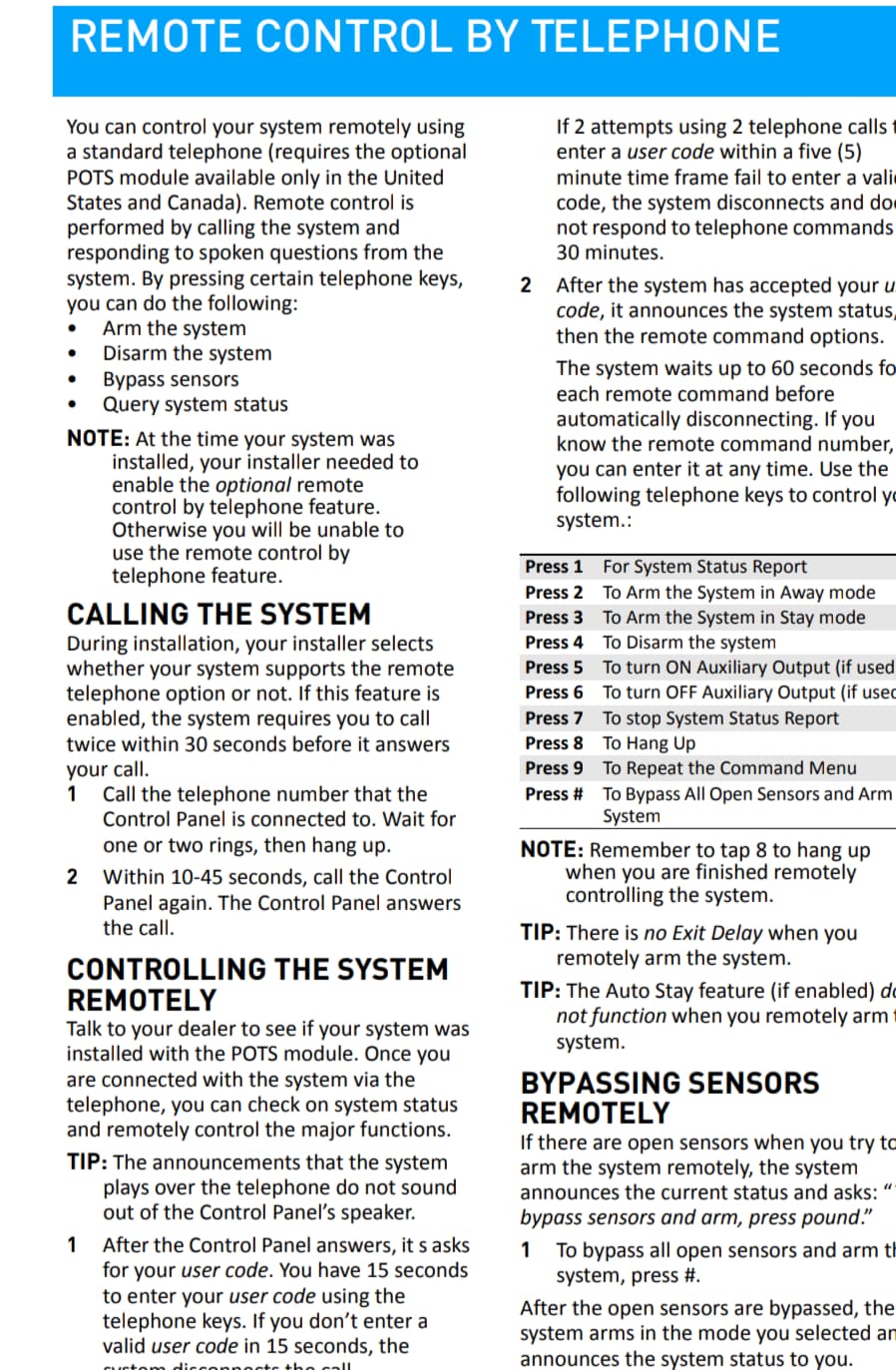

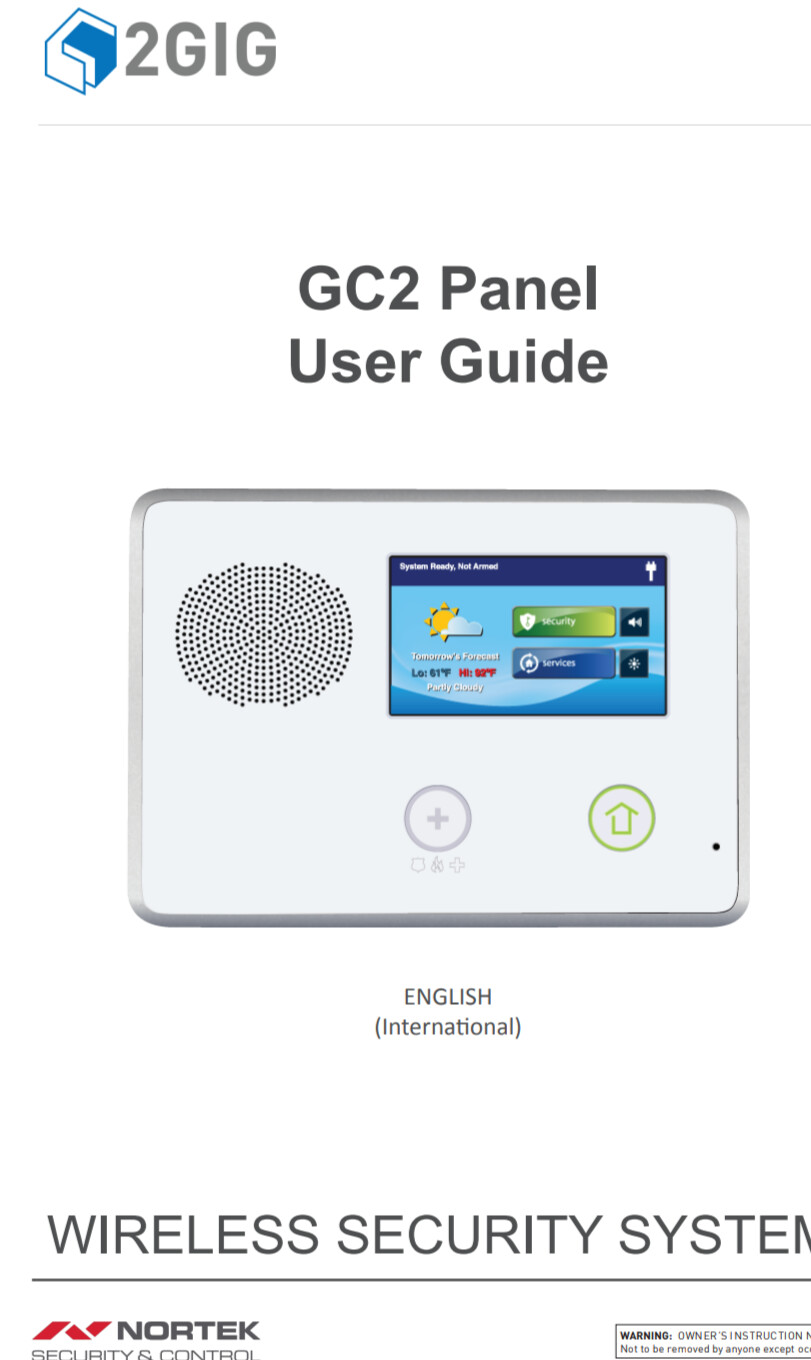

so simple the last page even has a picture.

I appreciate it

: )

5

My pleasure.

6

follow up

I made the RJ45 to RJ11 cable to plug the POTS adapter into my MagicJack

Works well… I can call in and check status and arm and disarm the system.

thanks again
