2GIG Edge Panel Sensor Programming

How To
,
1

How to access the sensor programming section

To begin from the Edge panel click on:

  • Settings Gear Icon
  • Use Face Recognition or enter the Installer Code (default 1561)
  • Click on Installer Toolbox
  • Click on Panel Programming
  • Click on the programming section associated with the device being programming (ex. Wireless Zones)

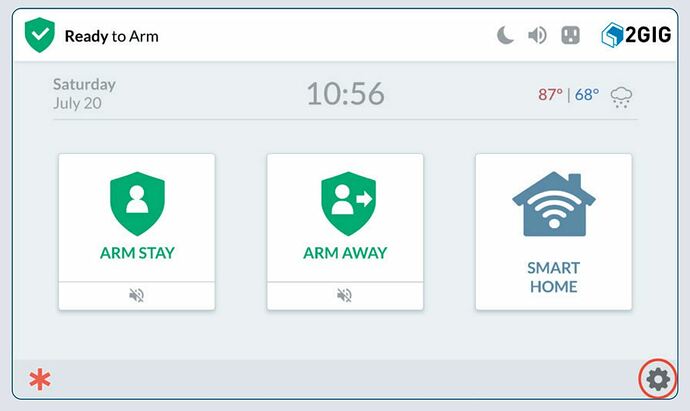

Programming1
Programming11113×664 41.4 KB

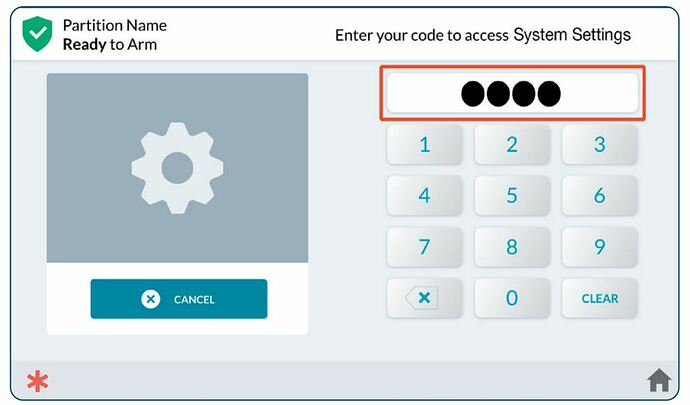

Programming2
Programming21100×647 45.9 KB

Programming3
Programming31103×661 44.7 KB

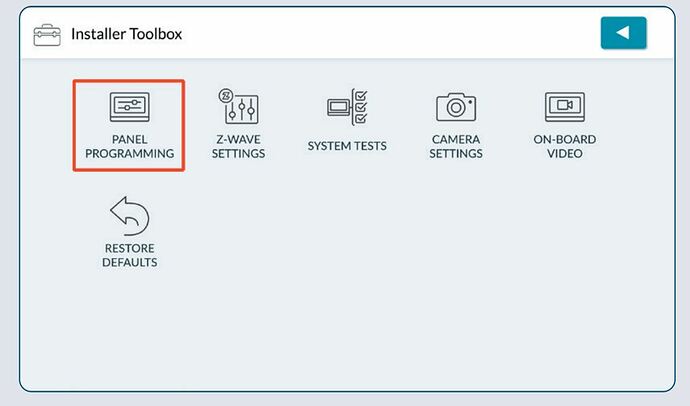

Programming4
Programming41066×628 30.7 KB

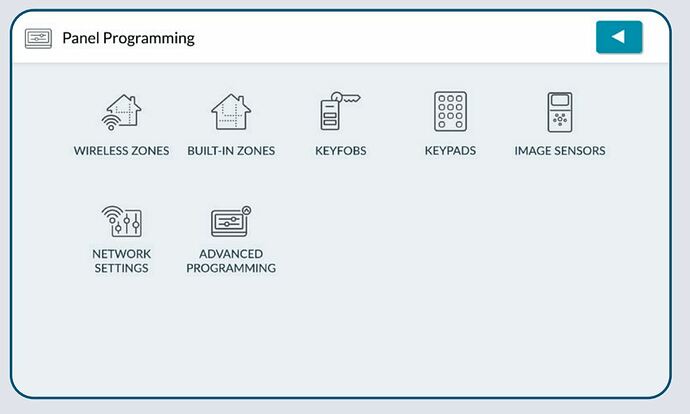

Programming5
Programming51056×634 34.5 KB

Programming6
Programming61045×630 65.3 KB

2Gig Edge Alarm Panel
2GIG IRF motion detector
2Gig Edge Alarm Panel
3

2GIG-DW10-345 Thin Door/Window Contact, Programmed for an Entry Door

  • Sensor Type: 01 - Exit Entry 1
  • Equipment Code: (0862) 2GIG Thin Door/Window Contact
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 2
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
4

2GIG-DW10-345 Thin Door/Window Contact, Programmed for a Window

  • Sensor Type: 03 - Perimeter
  • Equipment Code: (0862) 2GIG Thin Door/Window Contact
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 2
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
5

2GIG-DW10-345 Thin Door/Window Contact, Programmed for a Wired Input

  • Sensor Type: Based on the wired sensor type used
  • Equipment Code: (0862) 2GIG Thin Door/Window Contact
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
6

2GIG-DW20R-345 Recessed Door Contact

  • Sensor Type: 01 - Exit Entry 1
  • Equipment Code: (0863) 2GIG Recessed Door Contact
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
7

2GIG-PIR1-345 Motion Detector

  • Sensor Type: 04 - Interior Follower
  • Equipment Type: Motion
  • Equipment Code: (0869) 2GIG PIR Motion Detector
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: Disabled
8

2GIG-GB1-345 Glass Break Detector

  • Sensor Type: 04 - Interior Follower
  • Equipment Type: Contact
  • Equipment Code: (0864) 2GIG Glass Break Detector
  • Serial Number: Learn - Trip Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Transmission Delay: Disabled
  • Voice Descriptor: As Desired
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As Desired
9

2GIG-SMKT3-345, 2GIG-SMKT8-345 Smoke/Heat/Freeze Detector

  • Sensor Type: 09 - 24 Hour Fire
  • Equipment Code: (1058) 2GIG Smoke Detector
  • Serial Number: Learn - Tamper Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Voice Descriptor: Smoke Detector
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
  • Sensor Type: 09 - 24 Hour Fire
  • Equipment Code: (1058) 2GIG Smoke Detector
  • Serial Number: Learn - Tamper Sensor
  • Equipment Age: New
  • Sensor Loop: 2
  • Voice Descriptor: Heat Detector
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
  • Sensor Type: 08 - 24 Hour Auxiliary Alarm
  • Equipment Type: Freeze
  • Equipment Code: (1058) 2GIG Smoke Detector
  • Serial Number: Learn - Tamper Sensor
  • Equipment Age: New
  • Sensor Loop: 3
  • Voice Descriptor: Freeze Detector
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
10

2GIG-CO3-345/CO8-345 Carbon Monoxide Detector

  • Sensor Type: 14 - 24 Hour Carbon Monoxide
  • Equipment Code: (1026) 2GIG CO Detector
  • Serial Number: Learn - Tamper Sensor
  • Equipment Age: New
  • Sensor Loop: 1
  • Voice Descriptor: Carbon Monoxide Detector
  • Sensor Reports: Enabled
  • Sensor Supervised: Enabled
  • Sensor Chime: As desired
11

How to Delete a sensor from programming

To begin from the Edge panel click on:

  • Settings Gear Icon
  • Use Face Recognition or enter the Installer Code (default 1561)
  • Click on Installer Toolbox
  • Click on Panel Programming
  • Click on the programming section associated with the device being programming (ex. Wireless Zones)
  • Select the Zone you wish to remove and choose Reset Zone
12

Learn E+ Sensors with Multiple Loops

The E+ Door/Window sensors and the E+ Smoke Detector have multiple loops.
If one of these sensor has been programmed, the additional loops are available
to add to a zone without an additional learn/pairing. Follow the steps below to
configure the additional loops (Door Window - Wired Loop and Smoke Heat and
Freeze Loops).

  1. Enter programming and select the zone you have
  2. Tap on the loop name(Wired) on the bottom of the screen

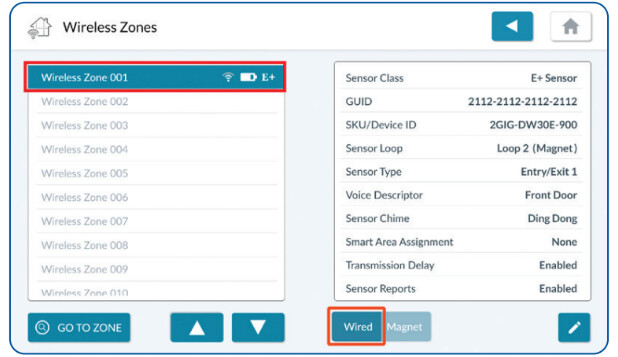

    Select Wired
    Select Wired618×357 50 KB

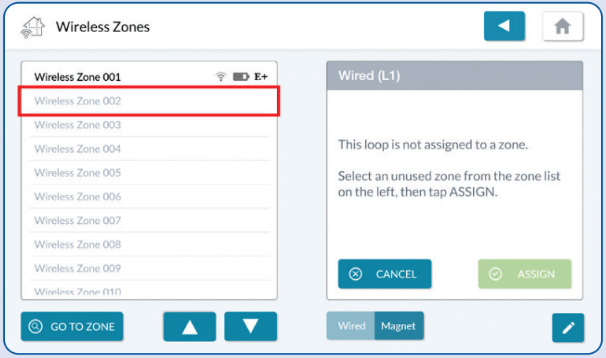

  3. Tap and highlight one of the available zones on the left side of the screen
    Select Zone
    Select Zone606×358 87.2 KB

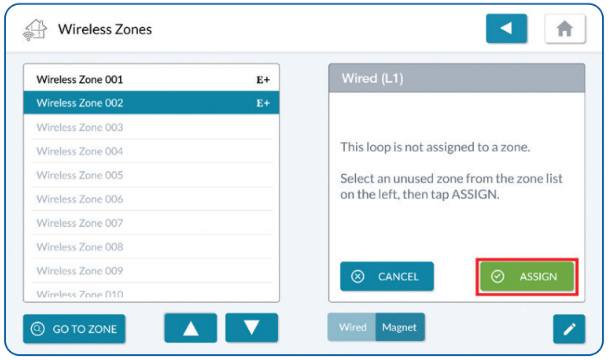

  4. Tap Assign to go to the setup process.
    Select Assign
    Select Assign609×360 87 KB
  5. Select the sensor type
  6. Adjust remaining options as needed
  7. Delete the reed zone if not needed
